Robot tending for a long part depends on three connected handoffs: establish a repeatable grip at the left machine or holding station, control the part’s far-end sweep through the route, then place it on the right roller table with a clear gripper exit. The case video shows an orange industrial robot gripping a long metal rod-like part and moving between those two stations.
Request a robot transfer concept and cycle-study review with the part drawing, daily output target, incoming presentation and roller-table layout.
Follow the route between the two handoff zones
The left machine or holding station and the right roller table define the two ends of the visible route. Between them, the robot changes position and end-effector orientation. This repeated motion gives the project team a practical starting point for defining pickup, retained transfer, placement and withdrawal as one continuous sequence.

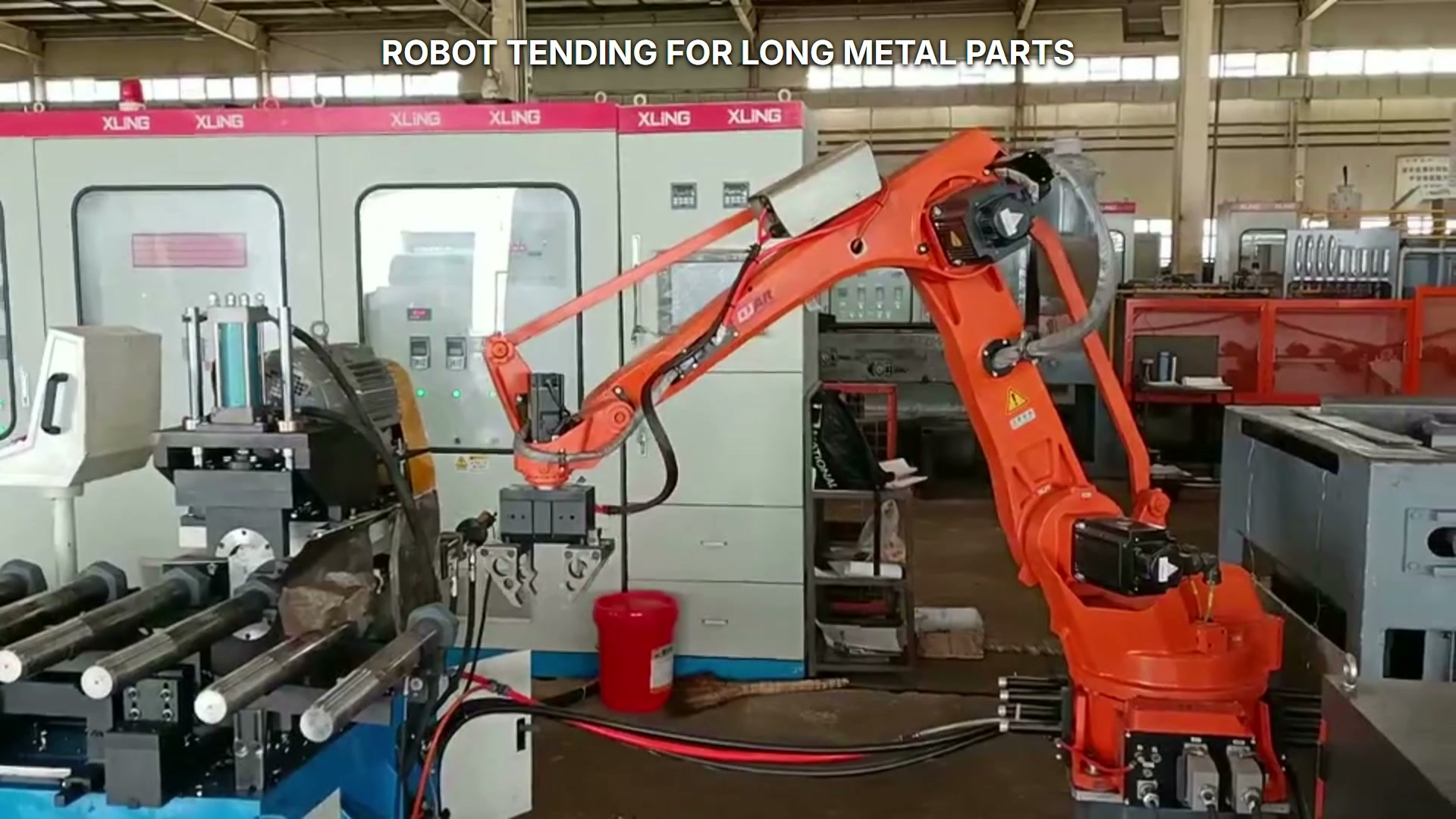

Route overview: the robot connects the left machine or holding station with the right roller table receiving area.
Define a repeatable pickup condition
Long-part pickup starts with the part datum, grip location and the unsupported length on each side of the gripper. The project must provide geometry, mass, center of gravity, stiffness, permitted contact zones and incoming position variation. The left station should support the part without blocking the gripper approach or withdrawal.
Record the part datum and the state that permits pickup. If multiple parts or variants enter the same station, define how the control system identifies the correct presentation and program. Select sensing only after these conditions are clear.
Check the complete long-part load path
A gripper creates a local holding region, while the long part extends beyond it and reacts to acceleration, orientation changes and external disturbance. Tool design should consider jaw geometry, contact materials, grip force, part retention confirmation and tool stiffness. Part geometry, mass, center of gravity, stiffness and permitted contact areas are necessary inputs.

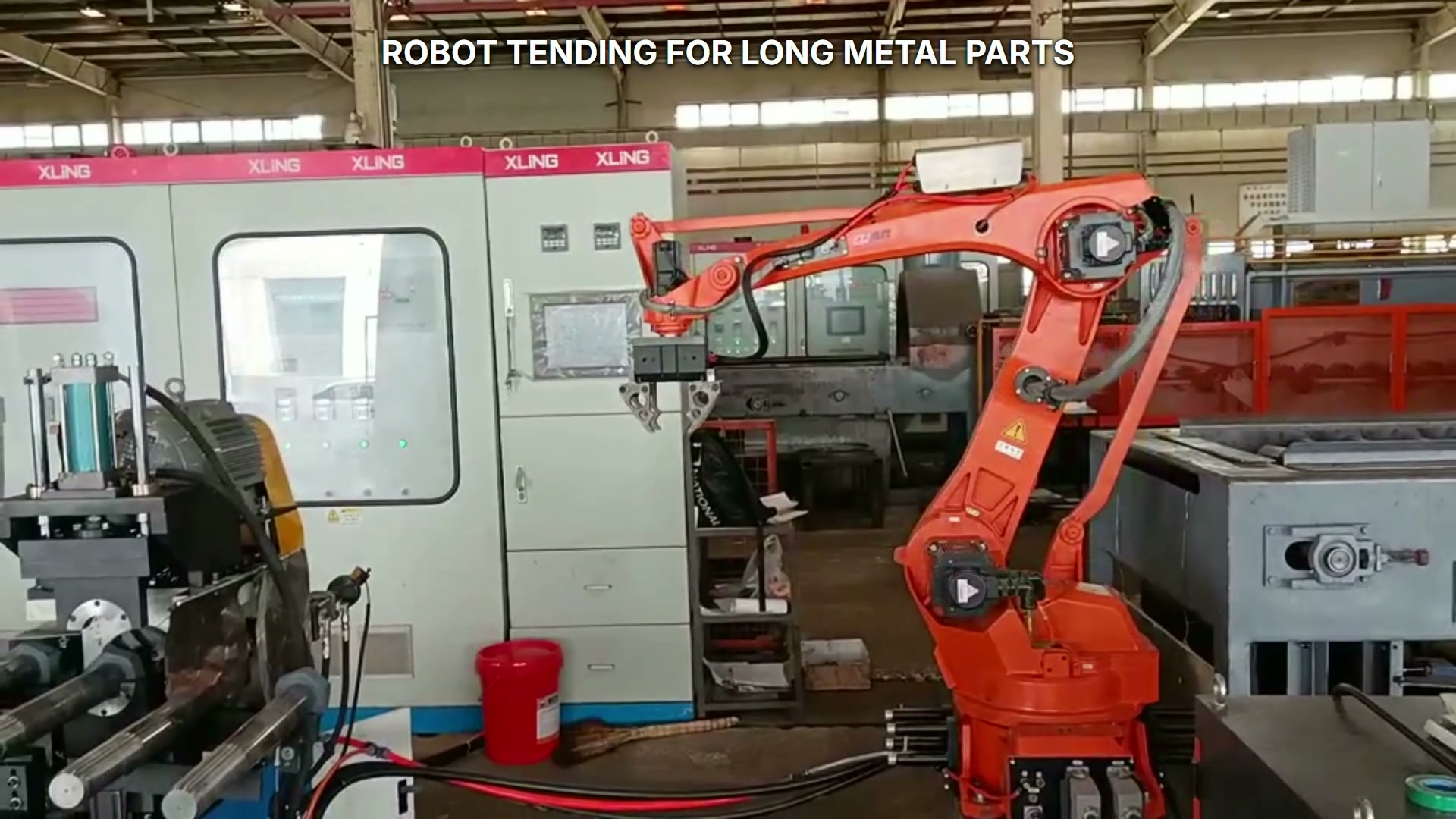

Rear-station view: the robot positions its gripper above the station.
Validate the complete tool-and-part envelope rather than the robot tool-center point alone. Include jaws, brackets, services and both ends of the longest expected part. Review clearance at the left machine or holding station, along the connecting motion and above the receiving area.
Match engineering decisions to project inputs
| Engineering decision | Required project input | Acceptance check |
|---|---|---|
| Pickup presentation | Part drawing, incoming position, available datum and surface condition | The tool reaches the approved contact zones and withdraws without disturbing the supply station. |
| Gripping tool | Part mass, center of gravity, stiffness, contact restrictions and jaw data | Representative parts remain supported through every validated orientation and motion. |
| Transfer route | Robot model, mounting position, tool geometry, hoses and surrounding equipment | The full robot, tool and part envelope clears both stations and the connecting route. |
| Roller-table receiving area | Roller geometry, placement datum, allowed area and access direction | The part reaches the defined receiving area and the tool withdraws without contact. |
| Sequence and signals | Part available, grip confirmation, receiving-area permission and release confirmation | Each transition begins from an identified and confirmed state. |
| Production target | Daily output, product mix, replenishment plan and permitted waits | A representative trial measures the complete sequence under agreed conditions. |
| Recovery and access | Stop states, access tasks and site safety requirements | The team can identify part location and execute a controlled recovery. |
This table separates application facts from engineering selections. It also gives buyers a common basis for comparing tool concepts, robot locations and station layouts.
Define the roller-table handoff and tool exit
The receiving area needs a datum or permitted placement zone, an approach direction and enough space for the gripping tool to release and withdraw. Define how the part remains supported after release and how the system confirms that the receiving area is ready for the next transfer.

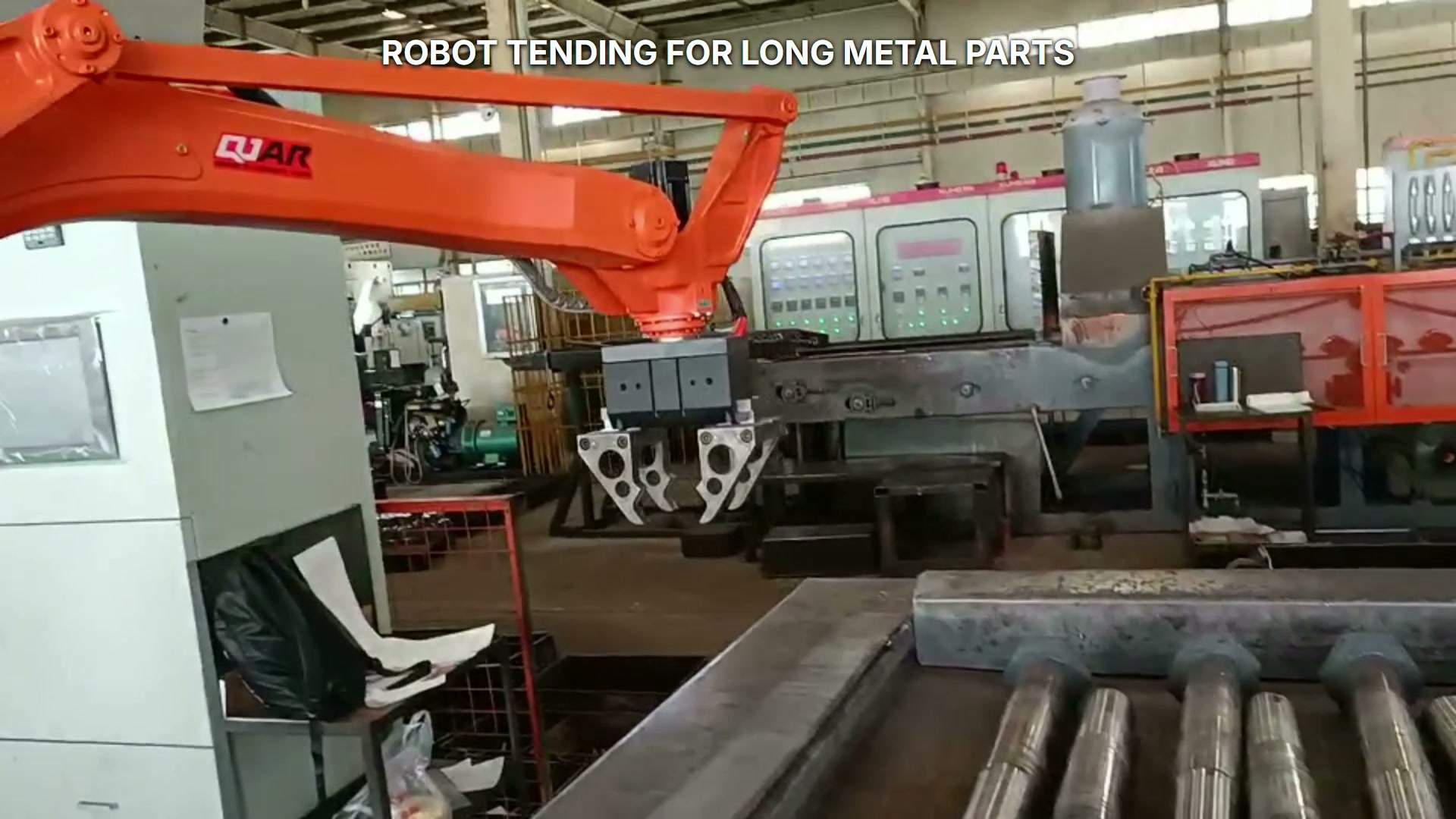

Roller-table view: the robot positions its gripper near the right roller-table station.
Include roller-table position variation, replacement or replenishment tasks and access for recovery in the layout review. If the real project requires a pattern, layer or separator sequence, those requirements must be supplied as project inputs and verified during trials.
Build the sequence from permissions and confirmations
A useful control sequence can be written in six conditions:
- Confirm the correct part is available at the supply station.
- Enter the pickup zone and engage the gripping tool at approved contact areas.
- Confirm the project’s required retained-part condition before withdrawal.
- Confirm that the receiving area is ready before entering it.
- Present the part at the defined placement datum or area, release and withdraw.
- Confirm the receiving state before permitting the next station action or transfer.
The actual sensors, thresholds and control architecture should be selected for the part, tool and site. A representative trial should include normal transfer, missing-part conditions, interrupted motion and controlled recovery.
Plan recovery around the physical part state
After a stop, the part may remain at the supply station, be held by the gripping tool or rest in the roller-table station. Recovery starts by identifying that physical state and the permission status of both zones. A defined recovery route should prevent a second pickup, an unintended release or entry into an occupied area.
OSHA’s industrial robot systems technical guidance describes robot applications as integrated systems that can include end effectors, worktables, clamps, process equipment and other machines. The robotics standards overview provides a starting point for U.S. integration, guarding and hazardous-energy references. Qualified personnel must establish the applicable path for the actual country, equipment and tasks.
Measure the complete application sequence
Cycle assessment should use defined start and end states and include part presentation, pickup, grip confirmation, transfer, placement, release, withdrawal and station waits. Test representative parts and the expected station variation. Record any replenishment, changeover and recovery steps that affect the planned production day.
Acceptance should confirm pickup access, retained transfer, route clearance, receiving-area placement, tool exit, controlled stops and recovery. Any placement tolerance or surface acceptance requirement must come from the project specification and be measured under agreed conditions.
To discuss a long-part machine-tending project, send the part drawing and daily output target to EVST, together with the supply and receiving-area layout. The machine-tending application page offers additional project-scoping context.
Questions buyers often ask
What inputs should a buyer prepare first?
Start with the part drawing, mass, center of gravity, stiffness, permitted grip areas, incoming presentation, roller-table geometry and daily output. Add product variants and replenishment tasks so tooling and layout can be reviewed together.
How should a gripping tool be evaluated?
Review jaw geometry, contact material, grip force, retention confirmation, service routing and tool stiffness against representative parts. Validate every required orientation and motion under agreed trial conditions.
What defines a practical receiving area?
Provide a placement datum or allowed zone, roller-table position variation, approach direction, support after release and clear tool withdrawal. Include roller-table access and replacement tasks in the layout.
When should cycle time be measured?
Measure after both handoff zones, the complete route, control permissions and recovery states work with representative parts. Include real station waits and replenishment activities defined by the project.
Footage boundary: the video shows an orange industrial robot gripping a long metal rod-like part and moving between a left machine or holding station and a right roller table; it does not establish the specific machining process, material grade, robot model, payload, cycle time, placement accuracy, sensing method, production benefit, customer identity or installed safeguarding.
