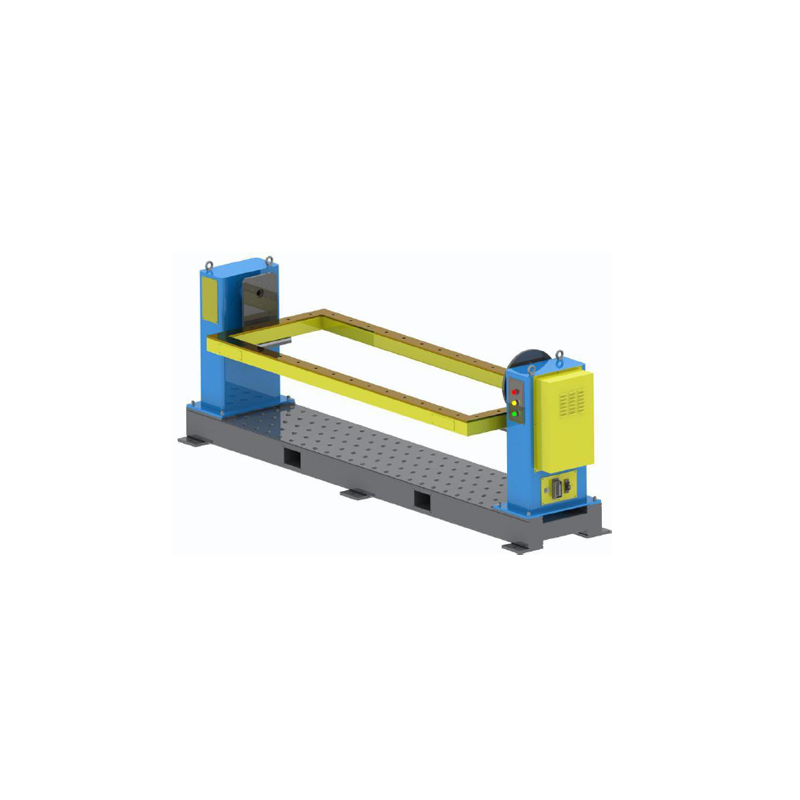

Single Axis Welding Positioner EVS-SWP-ZW-300/500/800/1200

Rated Payload Options

Structure Introduction

• This single axis servo positioner consists of fixing base, gyration main spindle case and tail case, welding gyration frame, AC servo motor, RV precise reducer, conductive system, and protective cover.
• Fixing base is made by high-quality section, the machining was after stress relief annealing so the machining accuracy and the use accuracy are assured. Antirust appearance paint is beautiful and elegant, and the color can be customized.
• Gyration main spindle case and tail case is made by high-quality section. The stress relief annealin and the machining ensure durability and stability after a long time use.
• Welding gyration frame is made by high-quality section steel, the machining was after stress relief annealing so the degree of surface finish and the stability are asured. With standard pitch tapped ole on the surface it’s easy to install positioning tooling.
• The AC servo motor matching the RV reducer can guarantee the high gyration stabilily, high ositioning accuracy, the long durability, the low faliure rate.
• We choose brass as the conductive material, because it has good electrical conductivity. The conduct substrate is intearatal isolated. so the servo motor, robot body, welding power source is completely safe.
• We choose Omron(Japan) PLC to control the positioner, electrical elements are all from famous brand so it has high stability, low failure rate.
