Vertical Gyration 3 Axis Servo Positioner EVS-TWP-C-500/1000

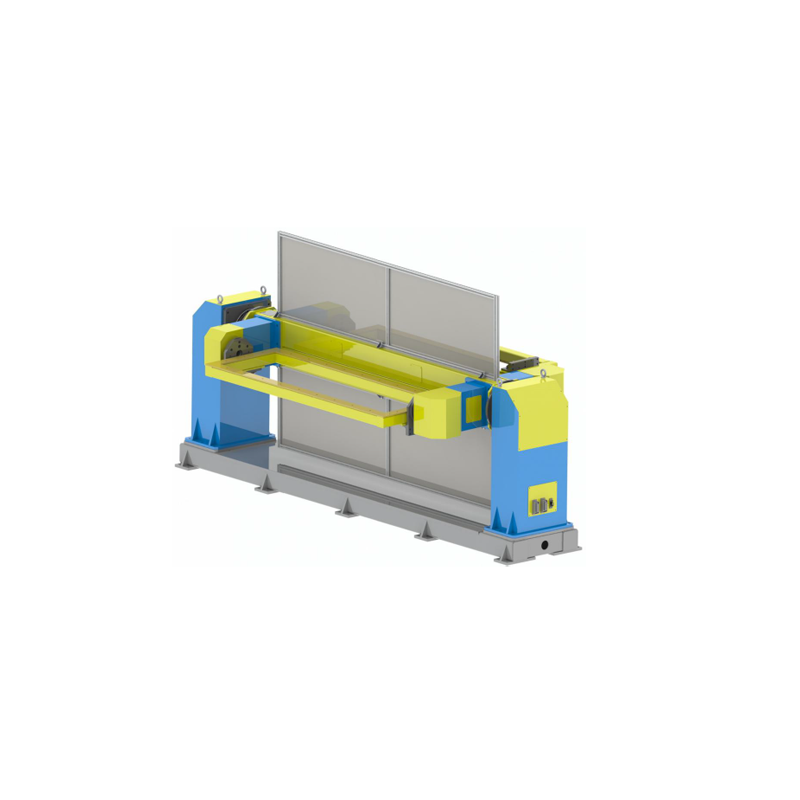

This three axies vertical gyration servo positioner consists of whole welding frame, gyration frame, AC servo motor, RV precise reducer, gyration support part, conductive system protective cover and electrical control system.

Request A Quote

Updating

Vertical Gyration Three Axis Servo Positioner
Item	EVS-TWP-C-1000	EVS-TWP-C-500
Rated load	1000kg (within axis 2 radius R400mm)	500kg (within main axis radius R400mm)
Standard gyration radius of main axis	R1500mm	R1200mm
Standard gyration radius of auxiliary axis	R500mm	R400mm
Gyration angle of axis 1	±180°	±180°
Gyration angle of axis 2	±360°	±360°
Rated gyration speed of axis 1	24°/S	50°/S
Rated gyration speed of axis 2	70°/S	70°/S
Repeated positioning accuracy	±0.20mm	±0.10mm
Dimension of the gyration frame (length×width×height)	3200mm×1000mm×110mm	2200mm×800mm×90mm
Positioner dimension (length×width×height)	5200mm×1000mm×1850mm	4000mm×700mm×1650mm
Height of axis 1 gyration center	1500mm	1350mm
Power supply	Three phase 200V ±10% 50Hz (with isolation transformer)	Three phase 200V ±10% 50Hz (with isolation transformer)
Insulation grade	H	H
Self weight	about 3000kg	about 1800kg

More +

This three axies vertical gyration servo positioner consists of whole welding frame, gyration frame, AC servo motor, RV precise reducer, gyration support part, conductive system protective cover and electrical control system.
Whole welding frame is made by high-quality section, the machining was after stress relief annealing so the machining accuracy and the use accuracy are assured. Antirust appearance paint is beautiful and elegant, and the color can be customized.
Gyration frame is made by high-quality steel section with professional machining. With standard pitch tapped hole on the surface for installing positioning tooling, and it was painted after black oxidation treatment.
The AC servo motor matching the RV reducer can guarantee the high gyration stabilily, high positioning accuracy, the long durability, the low faliure rate.
We choose brass as the conductive material, because it has good electrical conductivity. The conduct substrate is integratal isolated, so the servo motor, robot body, welding power source is completely safe.
We choose Omron(Japan) PLC to control the positioner, electrical elements are all from famous brand so it has high stabilty, low failure rate.
Light shield is made by aluminium section and aluminium-plastic panel, it can cover the arc ht when the welding and cutting proceed.
