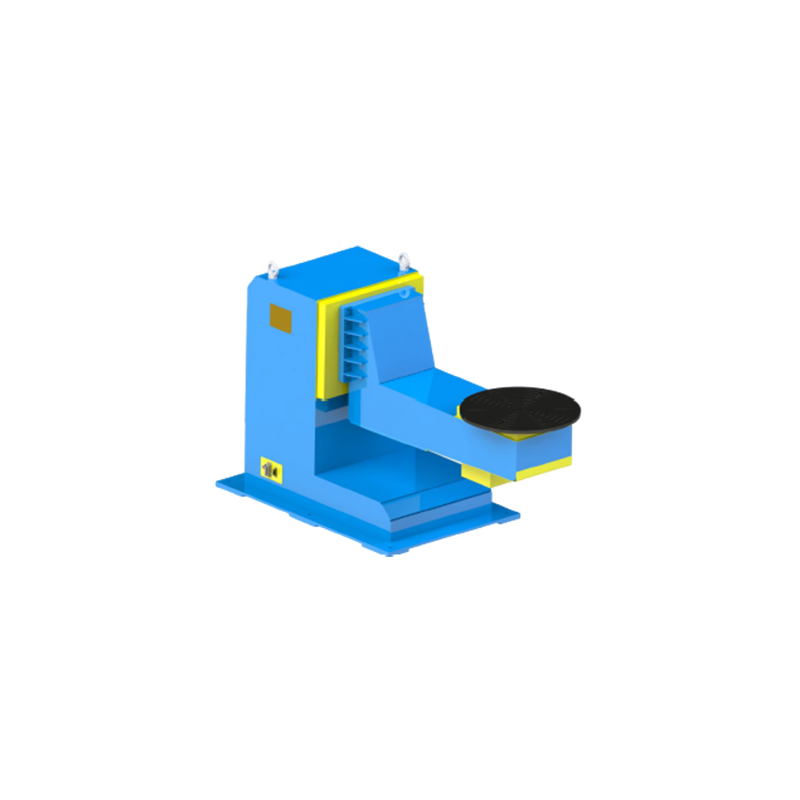

L Type Two Axis Welding Positioner EVS-DWP-L-500/1000/2000



  • This C-type double axies servo positioner consists of whole welding frame, gyration frame, AC servo motor, RV precise reducer, gyration support part, conductive system, protective cove and electrical control system.

  • Rated Load: 500/1000/5000kg
  • Repeat Positioning Accuracy: ±0.10mm/±0.10mm/±0.20mm
  • Rated Gyration Speed of Axis One: 50°/S, 50°/S, 17°/S
  • Rated Gyration Speed of Axis Two: 70°/S, 70°/S, 17°/S

Request A Quote

Database Download

  • 3D Drawings
  • Maintenance Manuals
  • Instructions

Updating

Updating

Updating

Technical Parameters

L Type Two Aixs Welding Positioner
Item EVS-DWP-L-500 EVS-DWP-L-1000 EVS-DWP-L-2000
Rated load 500kg (within axis 2 radius R400mm) 1000kg (within axis 2 radius R600mm) 2000kg (within axis 2 radius R800mm)
Standard radius of gyration R400mm R600mm R800mm
Gyration angle of axis 1 ±180° ±180° ±180°
Gyration angle of axis 2 ±360° ±360° ±360°
Rated gyration speed of axis 1 50°/S 50°/S 17°/S
Rated gyration speed of axis 2 70°/S 70°/S 17°/S
Repeated positioning accuracy ±0.10mm ±0.10mm ±0.20mm
Positioner dimension(length×width×height) 1500mm×500mm×850mm 2000mm×750mm×1200mm 2400mm×900mm×1600mm
Standard axis 2 gyration disk φ800mm φ1200mm φ1500mm
Height of axis 1 gyration center 550mm 800mm 1000mm
Power supply Three phase 200V ±10% 50Hz(with isolation transformer) Three phase 200V ±10% 50Hz (with isolation transformer) Three phase 200V ±10% 50Hz (with isolation transformer)
Insulation grade H H H
Self weight about 900kg about 1600kg about 2500kg

Structure Introduction

  • This C-type double axies servo positioner consists of whole welding frame, gyration frame, AC servo motor, RV precise reducer, gyration support part, conductive system, protective cove and electrical control system.
  • The whole welding frame is made by high-quality section, the machining was after stress relief annealing so the machining accuracy and the use accuracy are assured. Antirust appearance paint is beautiful and elegant, and the color can be customized.
  • Gyration frame is made by high-quality steel section with professional machining. With standard pitch tapped hole on the surface for installing positioning tooling, and it was painted after black oxidation treatment.
  • The AC servo motor matching the RV reducer can guarantee high gyration stabilily, high positioning accuracy, long durability, low faliure rate.
  • We choose brass as the conductive material, because it has good electrical conductivity The conduct substrate is integratal isolated, so the servo motor, robot body, welding power source is completely safe.
  • We choose Omron(Japan) PLC to control the positioner, electrical elements are all from famous brand so it has high stabilty, low failure rate.
