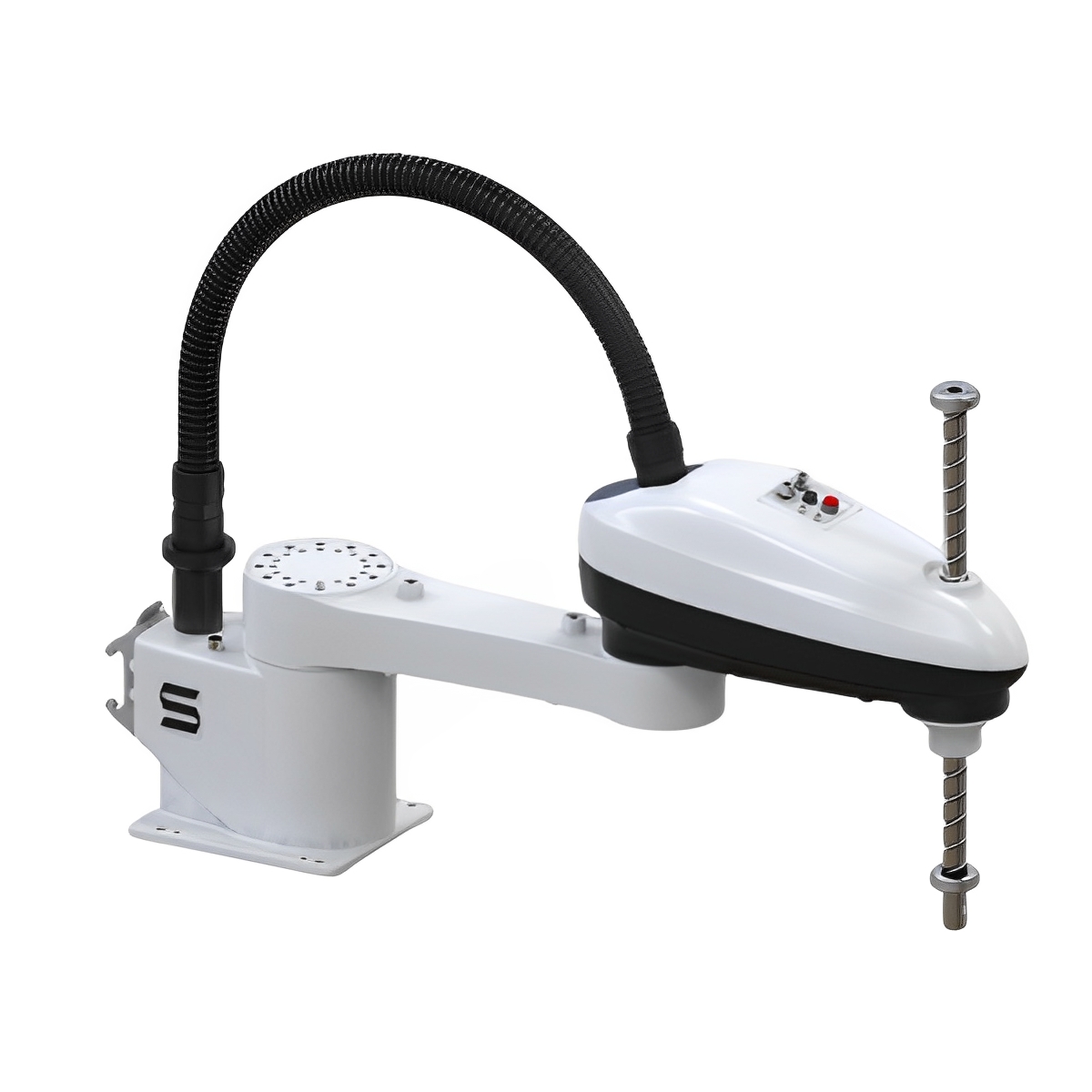

The EVS006 – 600S is a high-performance 4-axis robotic marvel. Boasting a maximum reach of 600mm, it extends further to handle a wider range of tasks compared to similar models. Its payload capabilities are impressive, with a rated load of 3kg and a maximum load of 6KG, making it suitable for heavier-duty operations.
| Model | EVS006-600S | |||
| Axis | 4 | |||
| Maximum reach | 600mm | |||
| Payload | Rated Load | 3kg | ||
| Maximum Load | 6KG | |||
| Permissible Inertial | Rated Torque | 0.01kg.m² | ||
| Maximum Torque | 0.12kg.m² | |||
| Position Repeat Accuracy | 1st Axis+2nd Axis | ±0.02mm | ||
| Elevating Axis | ±0.01mm | |||
| Rotation Axis | ±0.01° | |||
| Max Speed | lst Axis | 450 °/sec | ||
| 2nd Axis | 720 °/sec | |||
| Elevating Axis | 1000mm/sec | |||
| Rotation Axis | 2000 °/sec | |||
| Max Operating Area | 1st Axis | ±132 ° | ||
| 2nd Axis | ±142 ° | |||
| Elevating Axis | 220mm | |||
| Rotation Axis | ±360 ° | |||
| Installation Parameters | Floor | |||
| Robot Weight | 17Kg | |||
| Power Consumption | 0.8kw | |||
| Installation Environment |
Temperature | 0~+45℃ | ||
| Humidity | 20~80%RH(No Condensation) | |||
| Vibration | 4.9M/S² or less | |||
