Delta Robots-ZhiHuaSeries WSC-600DE-L15/L30

Accurate positioning, stable and reliable, flexible.
Unique spring design extends service life and improves safety.
Unique fourth axis design achieves a rotation accuracy of up to 0.05 degrees.
Inverted installation with excellent tracking performance.
High-quality, cost-effective.
Ultra-high speed picking of goods, up to 120 times/min.
High cost-performance, independently developed system and appearance.
Strong load-carrying capacity, high stiffness, low weight-to-load ratio, and good dynamic performance.

Performance parameters

Model	WSC-600DE-L15	WSC-600DE-L30
Power Rating	3 axis	3 axis
(kg) Max Load	15kg	30kg
Standard cycle time	(25/305/25mm)	(25/305/25mm)
Repeat positioning accuracy	±0.05mm	±0.05mm
Angular Positioning Accuracy	0.05°	0.05°
Power	220V	220V
Power Rating	2.5kw	4.5kw
Noise Level	<75db	<75db
Protection Level	IP54	IP54
Motor Method	AC Servo Drive	AC Servo Drive
Demonstrator	7 inch	7 inch
VisionPositioningModule	Optional (130W camera, lens, light source)	Optional (130W camera, lens, light source)
Operating Instructions	PTP、LINE	PTP、LINE

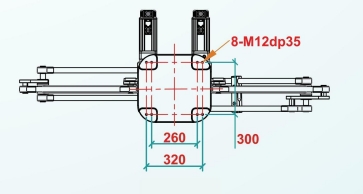

Installation Method	inverted	inverted
Robot Weight	65kg	65kg
