Kawasaki Industrial Robots: Models and Selection Guide
Compare Kawasaki robot families for general handling, welding, palletizing, high-payload and parallel-link applications. Select the process family first, then review payload, reach, wrist loading, mounting and controller requirements.
48 Searchable ModelsGeneral to High-Payload FamiliesRobot and Controller Review
How to choose a Kawasaki robot family
Kawasaki families are organized around different processes and load classes. Choose the family by task before comparing nominal payload and reach, because wrist limits, mounting, environment and controller requirements may change the viable shortlist.
Choose by process familySeparate general-purpose, welding, palletizing, high-payload and parallel-link tasks.
Check wrist limitsValidate tool center of gravity, moment and inertia as well as total mass.
Match controller and cellReview controller, process equipment, mounting, safety and interfaces for the application.
Configuration confirmation: Kawasaki robot availability, exact variant, controller, options, tooling, safety, price, lead time, destination, warranty, service and compliance are confirmed for the requested configuration. The model table does not by itself define the complete automation package.
Compare Kawasaki robot models by family
Filter by model, family, axes, payload and reach after choosing the process category. Use wrist-load, mounting, environment and controller fields to distinguish candidates that look similar on payload alone.
Showing 48 of 48 models
Move the table horizontally
| Image | Model | Robot family | Axes | Payload | Maximum reach / motion range | Repeatability | Mass | Mounting | Application | Protection | Joint range / maximum speed | Allowable wrist load | Installation environment | Controller / power | Special performance | Next action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | RS003N | R-series general-purpose robots | 6 | 3 kg | 620 mm | ±0.02 mm | 20 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | IP54 or equivalent | Range — JT1 ±160°;JT2 +150° to -60°;JT3 +120° to -150°;JT4 ±360°;JT5 ±135°;JT6 ±360° |Maximum speed — JT1 360°/s;JT2 250°/s;JT3 225°/s;JT4 540°/s;JT5 225°/s;JT6 540°/s | Moment — JT4 5.8 N·m;JT5 5.8 N·m;JT6 2.9 N·m |Inertia — JT4 0.12 kg·m²;JT5 0.12 kg·m²;JT6 0.03 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |
 | RS007N | R-series general-purpose robots | 6 | 7 kg | 730 mm | ±0.02 mm | 35 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 ±135°;JT3 ±155°;JT4 ±200°;JT5 ±125°;JT6 ±360° |Maximum speed — JT1 470°/s;JT2 380°/s;JT3 520°/s;JT4 550°/s;JT5 550°/s;JT6 1,000°/s | Moment — JT4 17 N·m;JT5 17 N·m;JT6 10 N·m |Inertia — JT4 0.5 kg·m²;JT5 0.5 kg·m²;JT6 0.2 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |
 | RS007L | R-series general-purpose robots | 6 | 7 kg | 930 mm | ±0.03 mm | 36 kg | Floor, Ceiling, Wall | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 ±135°;JT3 ±157°;JT4 ±200°;JT5 ±125°;JT6 ±360° |Maximum speed — JT1 370°/s;JT2 310°/s;JT3 410°/s;JT4 550°/s;JT5 550°/s;JT6 1,000°/s | Moment — JT4 17 N·m;JT5 17 N·m;JT6 10 N·m |Inertia — JT4 0.5 kg·m²;JT5 0.5 kg·m²;JT6 0.2 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |
 | RS013N | R-series general-purpose robots | 6 | 13 kg | 1,460 mm | ±0.03 mm | 170 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | IP67 or equivalent | Range — JT1 ±180°;JT2 +138° to -105°;JT3 +135° to -159°;JT4 ±200°;JT5 ±125°;JT6 ±360° |Maximum speed — JT1 265°/s;JT2 250°/s;JT3 265°/s;JT4 475°/s;JT5 475°/s;JT6 730°/s | Moment — JT4 26 N·m;JT5 26 N·m;JT6 10 N·m |Inertia — JT4 0.9 kg·m²;JT5 0.9 kg·m²;JT6 0.3 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA, F01/5.6kVA | / | Request this model |
 | RS015X | R-series general-purpose robots | 6 | 15 kg | 3,150 mm | ±0.06 mm | 545 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +135° to -155°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 200°/s;JT4 410°/s;JT5 360°/s;JT6 610°/s | Moment — JT4 34 N·m;JT5 34 N·m;JT6 22 N·m |Inertia — JT4 0.8 kg·m²;JT5 0.8 kg·m²;JT6 0.25 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | RS020N | R-series general-purpose robots | 6 | 20 kg | 1,725 mm | ±0.04 mm | 230 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | IP67 or equivalent | Range — JT1 ±180°;JT2 +155° to -105°;JT3 +150° to -163°;JT4 ±270°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 190°/s;JT2 205°/s;JT3 210°/s;JT4 400°/s;JT5 360°/s;JT6 610°/s | Moment — JT4 45 N·m;JT5 45 N·m;JT6 29 N·m |Inertia — JT4 0.9 kg·m²;JT5 0.9 kg·m²;JT6 0.3 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | RS025N | R-series general-purpose robots | 6 | 25 kg | 1,885 mm | ±0.04 mm | 270 kg | Floor | Assembling, handling, sealing, machine tending, grinding and deburring | IP67 or equivalent | Range — JT1 ±180°;JT2 +131° to -100°;JT3 +145° to -161°;JT4 ±270°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 215°/s;JT2 215°/s;JT3 270°/s;JT4 420°/s;JT5 420°/s;JT6 780°/s | Moment — JT4 60 N·m;JT5 60 N·m;JT6 32 N·m |Inertia — JT4 2.6 kg·m²;JT5 2.6 kg·m²;JT6 1.3 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |

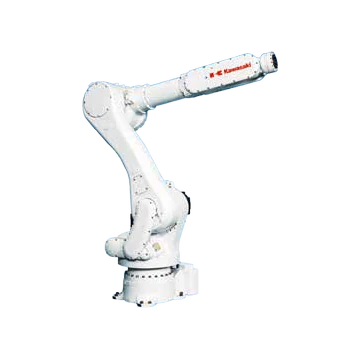

 | RS030N | R-series general-purpose robots | 6 | 30 kg | 2,100 mm | ±0.06 mm | 555 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +135° to -155°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 185/185/160°/s;JT4 260/260/185°/s;JT5 260/260/165°/s;JT6 360/360/280°/s | Moment — JT4 210/210/336 N·m;JT5 210/210/336 N·m;JT6 130/130/194 N·m |Inertia — JT4 16.8/28/34 kg·m²;JT5 16.8/28/34 kg·m²;JT6 6.6/11/13.7 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
| RS050N | R-series general-purpose robots | 6 | 50 kg | 2,100 mm | ±0.06 mm | 555 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +135° to -155°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 185/185/160°/s;JT4 260/260/185°/s;JT5 260/260/165°/s;JT6 360/360/280°/s | Moment — JT4 210/210/336 N·m;JT5 210/210/336 N·m;JT6 130/130/194 N·m |Inertia — JT4 16.8/28/34 kg·m²;JT5 16.8/28/34 kg·m²;JT6 6.6/11/13.7 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
| RS080N | R-series general-purpose robots | 6 | 80 kg | 2,100 mm | ±0.06 mm | 555 kg | Floor, Ceiling | Assembling, handling, sealing, machine tending, grinding and deburring | Wrist : IP67 or equivalent Base axes : IP65 or equivalent | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +135° to -155°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 185/185/160°/s;JT4 260/260/185°/s;JT5 260/260/165°/s;JT6 360/360/280°/s | Moment — JT4 210/210/336 N·m;JT5 210/210/336 N·m;JT6 130/130/194 N·m |Inertia — JT4 16.8/28/34 kg·m²;JT5 16.8/28/34 kg·m²;JT6 6.6/11/13.7 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BXP110S | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 110 kg | 1,634 mm | ±0.06 mm | 700 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +120° to -65°;JT3 +90° to -81°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 140°/s;JT2 130°/s;JT3 170°/s;JT4 220°/s;JT5 185°/s;JT6 300°/s | Moment — JT4 855 N·m;JT5 855 N·m;JT6 445 N·m |Inertia — JT4 90 kg·m²;JT5 90 kg·m²;JT6 50 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BXP110L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 110 kg | 2,597 mm | ±0.06 mm | 870 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +76° to -60°;JT3 +90° to -75°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 140°/s;JT2 130°/s;JT3 135°/s;JT4 220°/s;JT5 200°/s;JT6 300°/s | Moment — JT4 855 N·m;JT5 855 N·m;JT6 445 N·m |Inertia — JT4 90 kg·m²;JT5 90 kg·m²;JT6 50 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BXP135X | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 135 kg | 2,991 mm | ±0.06 mm | 880 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +76° to -60°;JT3 +90° to -75°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 140°/s;JT2 105°/s;JT3 140°/s;JT4 220°/s;JT5 200°/s;JT6 300°/s | Moment — JT4 855 N·m;JT5 855 N·m;JT6 445 N·m |Inertia — JT4 90 kg·m²;JT5 90 kg·m²;JT6 50 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BTP210L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 210 kg | 3,151 mm | ±0.08 mm | 1030 kg | Shelf | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +80° to -130°;JT3 +90° to -75°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 115°/s;JT2 90°/s;JT3 115°/s;JT4 140°/s;JT5 135°/s;JT6 240°/s | Moment — JT4 1,380 N·m;JT5 1,380 N·m;JT6 600 N·m |Inertia — JT4 205 kg·m²;JT5 205 kg·m²;JT6 160 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BX100S | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 100 kg | 1,634 mm | ±0.06 mm | 720 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +120° to -65°;JT3 +90° to -81°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 135°/s;JT2 125°/s;JT3 155°/s;JT4 200°/s;JT5 160°/s;JT6 300°/s | Moment — JT4 830 N·m;JT5 830 N·m;JT6 441 N·m |Inertia — JT4 60 kg·m²;JT5 60 kg·m²;JT6 30 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
| BX100N | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 100 kg | 2,200 mm | ±0.06 mm | 740 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +120° to -65°;JT3 +90° to -77°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 135°/s;JT2 110°/s;JT3 140°/s;JT4 200°/s;JT5 200°/s;JT6 300°/s | Moment — JT4 588.4 N·m;JT5 588.4 N·m;JT6 294.2 N·m |Inertia — JT4 60 kg·m²;JT5 60 kg·m²;JT6 30 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BX100L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 100 kg | 2,597 mm | ±0.06 mm | 930 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +76° to -60°;JT3 +90° to -75°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 105°/s;JT2 130°/s;JT3 130°/s;JT4 200°/s;JT5 160°/s;JT6 300°/s | Moment — JT4 830 N·m;JT5 830 N·m;JT6 441 N·m |Inertia — JT4 85 kg·m²;JT5 85 kg·m²;JT6 45 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
| BX200L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 200 kg | 2,597 mm | ±0.06 mm | 1460 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±160°;JT2 +76° to -60°;JT3 +90° to -75°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 105°/s;JT2 90°/s;JT3 100°/s;JT4 120°/s;JT5 120°/s;JT6 200°/s | Moment — JT4 2,300 N·m;JT5 2,300 N·m;JT6 1,000 N·m |Inertia — JT4 240 kg·m²;JT5 240 kg·m²;JT6 200 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BX130X | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 130 kg | 2,991 mm | ±0.06 mm | 920 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±180°;JT2 +76° to -60°;JT3 +76° to -60°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 105°/s;JT2 90°/s;JT3 130°/s;JT4 200°/s;JT5 160°/s;JT6 300°/s | Moment — JT4 830 N·m;JT5 830 N·m;JT6 441 N·m |Inertia — JT4 85 kg·m²;JT5 85 kg·m²;JT6 45 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
| BX200X | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 200 kg | 2,812 mm | ±0.07 mm | 1460 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±180°;JT2 +76° to -60°;JT3 +90° to -120°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 125°/s;JT2 102°/s;JT3 85°/s;JT4 105°/s;JT5 110°/s;JT6 180°/s | Moment — JT4 2,300 N·m;JT5 2,300 N·m;JT6 1,000 N·m |Inertia — JT4 240 kg·m²;JT5 240 kg·m²;JT6 200 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | BX300L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 300 kg | 2,812 mm | ±0.07 mm | 1460 kg | Floor | Assembling, handling and spot welding | Wrist : IP67 or equivalent Base axes : IP54 or equivalent | Range — JT1 ±180°;JT2 +76° to -60°;JT3 +90° to -120°;JT4 ±210°;JT5 ±125°;JT6 ±210° |Maximum speed — JT1 125°/s;JT2 102°/s;JT3 85°/s;JT4 105°/s;JT5 110°/s;JT6 180°/s | Moment — JT4 2,300 N·m;JT5 2,300 N·m;JT6 1,000 N·m |Inertia — JT4 240 kg·m²;JT5 240 kg·m²;JT6 200 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | ZX130L | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 130 kg | 2,951 mm | ±0.3 mm | 1400 kg | Floor | Assembling, handling and spot welding | / | Range — JT1 ±180°;JT2 +75° to -60°;JT3 +250° to -120°;JT4 ±360°;JT5 ±130°;JT6 ±360° |Maximum speed — JT1 110°/s;JT2 110°/s;JT3 110°/s;JT4 140°/s;JT5 135°/s;JT6 230°/s | Moment — JT4 735 N·m;JT5 735 N·m;JT6 421 N·m |Inertia — JT4 51.9 kg·m²;JT5 51.9 kg·m²;JT6 27.4 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E02/7.5kVA | / | Request this model |
 | ZX165U | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 165 kg | 2,651 mm | ±0.3 mm | 1350 kg | Floor | Assembling, handling and spot welding | / | Range — JT1 ±180°;JT2 +75° to -60°;JT3 +250° to -120°;JT4 ±360°;JT5 ±130°;JT6 ±360° |Maximum speed — JT1 110°/s;JT2 110°/s;JT3 115°/s;JT4 140°/s;JT5 155°/s;JT6 260°/s | Moment — JT4 911.4 N·m;JT5 911.4 N·m;JT6 450.8 N·m |Inertia — JT4 78.4 kg·m²;JT5 78.4 kg·m²;JT6 40.2 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E02/7.5kVA | / | Request this model |
 | ZX200S | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 200 kg | 2,651 mm | ±0.3 mm | 1400 kg | Floor | Assembling, handling and spot welding | / | Range — JT1 ±180°;JT2 +75° to -60°;JT3 +250° to -120°;JT4 ±360°;JT5 ±130°;JT6 ±360° |Maximum speed — JT1 105°/s;JT2 110°/s;JT3 105°/s;JT4 120°/s;JT5 120°/s;JT6 200°/s | Moment — JT4 1,274 N·m;JT5 1,274 N·m;JT6 686 N·m |Inertia — JT4 117.6 kg·m²;JT5 117.6 kg·m²;JT6 63.7 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E02/7.5kVA | / | Request this model |
 | ZX300S | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 300 kg | 2,501 mm | ±0.3 mm | 1400 kg | Floor | Assembling, handling and spot welding | / | Range — JT1 ±180°;JT2 +75° to -60°;JT3 +250° to -120°;JT4 ±360°;JT5 ±130°;JT6 ±360° |Maximum speed — JT1 100°/s;JT2 85°/s;JT3 85°/s;JT4 90°/s;JT5 90°/s;JT6 150°/s | Moment — JT4 1,715 N·m;JT5 1,715 N·m;JT6 862 N·m |Inertia — JT4 166.6 kg·m²;JT5 166.6 kg·m²;JT6 107.8 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E02/7.5kVA | / | Request this model |
 | ZT165U | BXP/BTP/BX/ZX/ZT large-payload robots | 6 | 165 kg | 3,230 mm | ±0.3 mm | 1550 kg | Shelf | Assembling, handling and spot welding | / | Range — JT1 ±180°;JT2 +60 - –75°;JT3 +165 - –95°;JT4 ±360°;JT5 ±130°;JT6 ±360° |Maximum speed — JT1 105°/s;JT2 105°/s;JT3 105°/s;JT4 135°/s;JT5 135°/s;JT6 210°/s | Moment — JT4 911.4 N·m;JT5 911.4 N·m;JT6 450.8 N·m |Inertia — JT4 78.4 kg·m²;JT5 78.4 kg·m²;JT6 40.2 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E02/7.5kVA | / | Request this model |
 | BA006N | BA/RA arc-welding robots | 6 | 6 kg | 1,445 mm | ±0.06 mm | 150 kg | Floor, Ceiling | Arc welding | / | Range — JT1 ±165°;JT2 +150° to -90°;JT3 +90° to -175°;JT4 ±180°;JT5 ±135°;JT6 ±360° |Maximum speed — JT1 240°/s;JT2 240°/s;JT3 220°/s;JT4 430°/s;JT5 430°/s;JT6 650°/s | Moment — JT4 12 N·m;JT5 12 N·m;JT6 3.75 N·m |Inertia — JT4 0.4 kg·m²;JT5 0.4 kg·m²;JT6 0.07 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA、F01/5.6kVA | / | Request this model |
 | BA006L | BA/RA arc-welding robots | 6 | 6 kg | 2,036 mm | ±0.08 mm | 160 kg | Floor, Ceiling | Arc welding | / | Range — JT1 ±165°;JT2 +150° to -90°;JT3 +90° to -175°;JT4 ±180°;JT5 ±135°;JT6 ±360° |Maximum speed — JT1 210°/s;JT2 210°/s;JT3 220°/s;JT4 430°/s;JT5 430°/s;JT6 650°/s | Moment — JT4 12 N·m;JT5 12 N·m;JT6 3.75 N·m |Inertia — JT4 0.4 kg·m²;JT5 0.4 kg·m²;JT6 0.07 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA、F01/5.6kVA | / | Request this model |
 | BA013N | BA/RA arc-welding robots | 6 | 13 kg | 1,492 mm | ±0.04 mm | 260 kg | Floor | Arc welding | / | Range — JT1 ±165°;JT2 +150° to -95°;JT3 +90° to -185°;JT4 ±200°;JT5 ±135°;JT6 ±360° |Maximum speed — JT1 265°/s;JT2 250°/s;JT3 265°/s;JT4 470°/s;JT5 475°/s;JT6 730°/s | Moment — JT4 26 N·m;JT5 26 N·m;JT6 10 N·m |Inertia — JT4 0.9 kg·m²;JT5 0.9 kg·m²;JT6 0.3 kg·m² | 0 - 45 °C;25 - 85%(No dew, nor frost allowed) | F01/5.6kVA | / | Request this model |
 | BA013L | BA/RA arc-welding robots | 6 | 13 kg | 2,093 mm | ±0.06 mm | 280 kg | Floor | Arc welding | / | Range — JT1 ±165°;JT2 +150° to -95°;JT3 +90° to -185°;JT4 ±200°;JT5 ±135°;JT6 ±360° |Maximum speed — JT1 215°/s;JT2 215°/s;JT3 270°/s;JT4 440°/s;JT5 475°/s;JT6 730°/s | Moment — JT4 26 N·m;JT5 26 N·m;JT6 10 N·m |Inertia — JT4 0.9 kg·m²;JT5 0.9 kg·m²;JT6 0.3 kg·m² | 0 - 45 °C;25 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | RA005L | BA/RA arc-welding robots | 6 | 5 kg | 903 mm | ±0.03 mm | 37 kg | Floor, Ceiling | Arc welding | / | Range — JT1 ±180°;JT2 +135° to -80°;JT3 +118° to -172°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 300°/s;JT2 300°/s;JT3 300°/s;JT4 460°/s;JT5 460°/s;JT6 740°/s | Moment — JT4 12.3 N·m;JT5 12.3 N·m;JT6 7 N·m |Inertia — JT4 0.4 kg·m²;JT5 0.4 kg·m²;JT6 0.12 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |
 | RA015X | BA/RA arc-welding robots | 6 | 15 kg | 3,150 mm | ±0.06 mm | 545 kg | Floor, Ceiling | Arc welding | / | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +135° to -155°;JT4 ±360°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 200°/s;JT4 410°/s;JT5 360°/s;JT6 610°/s | Moment — JT4 34 N·m;JT5 34 N·m;JT6 22 N·m |Inertia — JT4 0.8 kg·m²;JT5 0.8 kg·m²;JT6 0.25 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |
 | RA020N | BA/RA arc-welding robots | 6 | 20 kg | 1,725 mm | ±0.04 mm | 230 kg | Floor, Ceiling | Arc welding | / | Range — JT1 ±180°;JT2 +155° to -105°;JT3 +150° to -163°;JT4 ±270°;JT5 ±145°;JT6 ±360° |Maximum speed — JT1 190°/s;JT2 205°/s;JT3 210°/s;JT4 400°/s;JT5 360°/s;JT6 610°/s | Moment — JT4 45 N·m;JT5 45 N·m;JT6 29 N·m |Inertia — JT4 0.9 kg·m²;JT5 0.9 kg·m²;JT6 0.3 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F01/5.6kVA | / | Request this model |

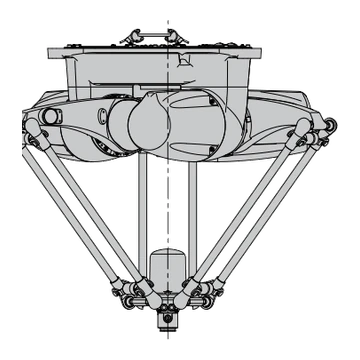

 | YF002N | YF delta robots | 4 | 2 kg | Φ600 × H200 mm | ±0.04 mm | 60 kg | Ceiling | Assembling and handling | IP65 or equivalent | / | / | 10 - 35 °C;35 - 85%(No dew, nor frost allowed) | F01/5.6 kVA | Angular repeatability ±0.1;Cycle time ＊2 (Payload) 0.3s (0.5kg), 0.36s(2kg) | Request this model |

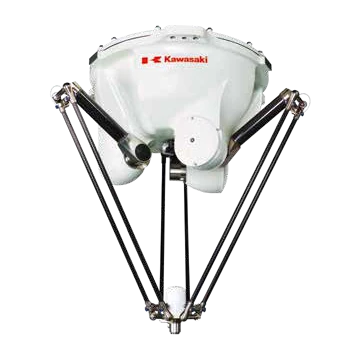

 | YF003N | YF delta robots | 4 | 3 kg | Φ1300 × H500 mm | ±0.1 mm | 145 kg | Ceiling | Assembling and handling | IP65 or equivalent | / | / | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F01/5.6kVA | Angular repeatability ±0.1;Cycle time ＊2 (Payload) 0.27s (1kg), 0.45s(3kg) | Request this model |

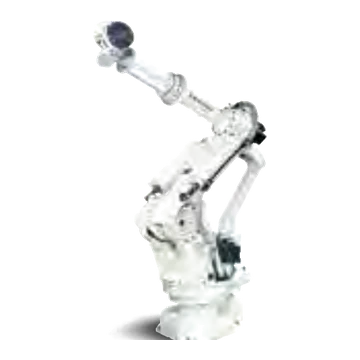

 | MX350L | MX/MT/MG extra-large robots | 6 | 360 kg | 3,018 mm | ±0.1 mm | 2800 kg | Floor | Handling and machine tending | / | Range — JT1 ±180°;JT2 +90° to -45°;JT3 +20° to -115°;JT4 ±360°;JT5 ±110°;JT6 ±360° |Maximum speed — JT1 80°/s;JT2 70°/s;JT3 70°/s;JT4 80°/s;JT5 80°/s;JT6 120°/s | Moment — JT4 2,740 N·m;JT5 2,740 N·m;JT6 1,960 N·m |Inertia — JT4 400 kg·m²;JT5 400 kg·m²;JT6 259 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F02/7.5kVA | / | Request this model |

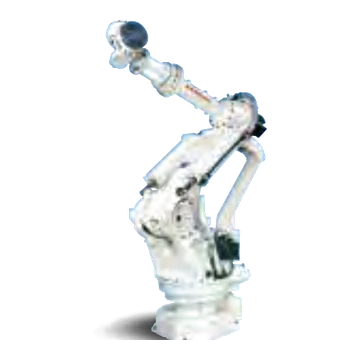

 | MX420L | MX/MT/MG extra-large robots | 6 | 420 kg | 2,778 mm | ±0.1 mm | 2800 kg | Floor | Handling and machine tending | / | Range — JT1 ±180°;JT2 +90° to -45°;JT3 +20° to -125°;JT4 ±360°;JT5 ±110°;JT6 ±360° |Maximum speed — JT1 80°/s;JT2 70°/s;JT3 70°/s;JT4 80°/s;JT5 80°/s;JT6 120°/s | Moment — JT4 3,920 N·m;JT5 3,920 N·m;JT6 1,960 N·m |Inertia — JT4 400 kg·m²;JT5 400 kg·m²;JT6 259 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F04/12kVA | / | Request this model |

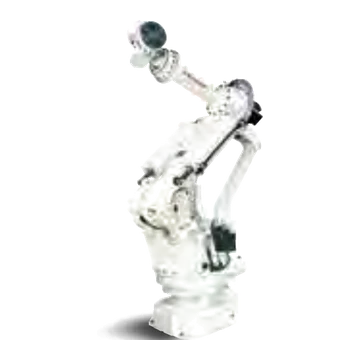

 | MX500N | MX/MT/MG extra-large robots | 6 | 500 kg | 2,540 mm | ±0.1 mm | 2750 kg | Floor | Handling and machine tending | / | Range — JT1 ±180°;JT2 +90° to -45°;JT3 +20° to -130°;JT4 ±360°;JT5 ±120°;JT6 ±360° |Maximum speed — JT1 80°/s;JT2 70°/s;JT3 70°/s;JT4 80°/s;JT5 80°/s;JT6 120°/s | Moment — JT4 3,920 N·m;JT5 3,920 N·m;JT6 1,960 N·m |Inertia — JT4 400 kg·m²;JT5 400 kg·m²;JT6 259 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F04/12kVA | / | Request this model |

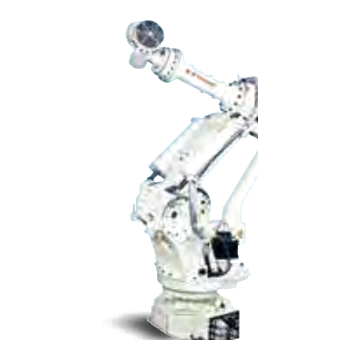

 | MX700N | MX/MT/MG extra-large robots | 6 | 700 kg | 2,540 mm | ±0.1 mm | 2860 kg | Floor | Handling and machine tending | / | Range — / |Maximum speed — / | Moment — / |Inertia — / | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F04/12kVA | / | Request this model |

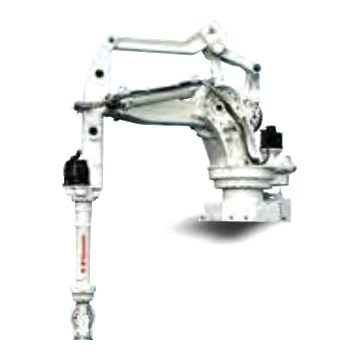

 | MT400N | MX/MT/MG extra-large robots | 6 | 400 kg | 3,503 mm | ±0.5 mm | 2600 kg | Floor | Handling and machine tending | / | Range — / |Maximum speed — / | Moment — / |Inertia — / | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E58/15kVA | / | Request this model |

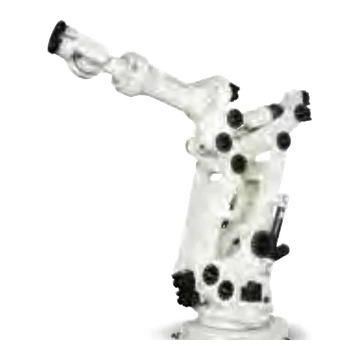

 | MG15HL | MX/MT/MG extra-large robots | 6 | 1500 kg | 4,005 mm | ±0.1 mm | 6550 kg | Floor | Handling and machine tending | / | Range — / |Maximum speed — / | Moment — / |Inertia — / | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | E58/15kVA | / | Request this model |
 | MC004N | MC medical and pharmaceutical robots | 6 | 4 kg | 505.8 mm | ±0.05 mm | 25 kg | Floor, Ceiling | Pharmaceutical | / | Range — JT1 ±180°;JT2 +135° to -95°;JT3 +60° to -155°;JT4 ±270°;JT5 ±120°;JT6 ±270° |Maximum speed — JT1 200°/s;JT2 180°/s;JT3 225°/s;JT4 700°/s;JT5 500°/s;JT6 350°/s | Moment — JT4 8.5 N·m;JT5 8.5 N·m;JT6 4.0 N·m |Inertia — JT4 0.2 kg·m²;JT5 0.2 kg·m²;JT6 0.1 kg·m² | 10 - 35 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |

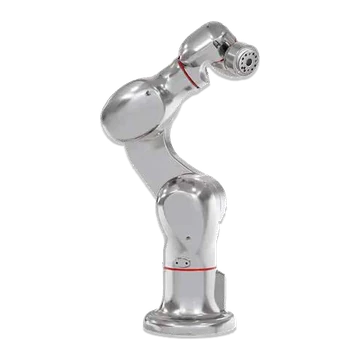

 | MC004V | MC medical and pharmaceutical robots | 6 | 4 kg | 505.8 mm | ±0.05 mm | 25 kg | Floor, Ceiling | Pharmaceutical | / | Range — JT1 ±180°;JT2 +135° to -95°;JT3 +60° to -155°;JT4 ±270°;JT5 ±120°;JT6 ±270° |Maximum speed — JT1 200°/s;JT2 180°/s;JT3 225°/s;JT4 700°/s;JT5 500°/s;JT6 350°/s | Moment — JT4 8.5 N·m;JT5 8.5 N·m;JT6 4.0 N·m |Inertia — JT4 0.2 kg·m²;JT5 0.2 kg·m²;JT6 0.1 kg·m² | 10 - 35 °C;35 - 85%(No dew, nor frost allowed) | F60/2.0kVA | / | Request this model |

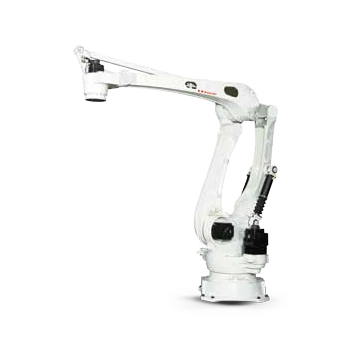

 | CP180L | CP/RD palletizing robots | 4 | 180 kg | 3,255 mm | ±0.5 mm | 1600 kg | Floor | Palletizing | / | Range — JT1 ±160°;JT2 +95° to -46°;JT3 +15° to -110°;JT4 ±360° |Maximum speed — JT1 130/100°/s;JT2 125/90°/s;JT3 125/90°/s;JT4 330/220°/s | Inertia — JT4 85/140 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F03/12kVA | / | Request this model |
| CP300L | CP/RD palletizing robots | 4 | 300 kg | 3,255 mm | ±0.5 mm | 1600 kg | Floor | Palletizing | / | Range — JT1 ±160°;JT2 +95° to -46°;JT3 +15° to -110°;JT4 ±360° |Maximum speed — JT1 130/100°/s;JT2 125/90°/s;JT3 125/90°/s;JT4 330/220°/s | Inertia — JT4 85/140 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F03/12kVA | / | Request this model |

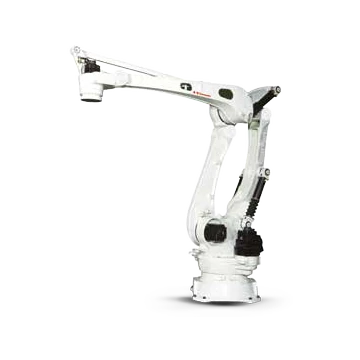

 | CP500L | CP/RD palletizing robots | 4 | 500 kg | 3,255 mm | ±0.5 mm | 1650 kg | Floor | Palletizing | / | Range — JT1 ±160°;JT2 +95° to -46°;JT3 +15° to -110°;JT4 ±360° |Maximum speed — JT1 85°/s;JT2 80°/s;JT3 80°/s;JT4 180°/s | Inertia — JT4 250 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F03/12kVA | / | Request this model |

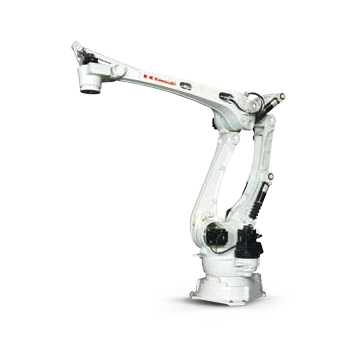

 | CP700L | CP/RD palletizing robots | 4 | 700 kg | 3,255 mm | ±0.5 mm | 1650 kg | Floor | Palletizing | / | Range — JT1 ±160°;JT2 +95° to -46°;JT3 +15° to -110°;JT4 ±360° |Maximum speed — JT1 75°/s;JT2 65°/s;JT3 65°/s;JT4 170°/s | Inertia — / | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F03/12kVA | / | Request this model |
 | RD080N | CP/RD palletizing robots | 5 | 80 kg | 2,100 mm | ±0.07 mm | 540 kg | Floor | Palletizing | / | Range — JT1 ±180°;JT2 +140° to -105°;JT3 +40° to -205°;JT4 ±360°;JT5 ±10° |Maximum speed — JT1 180°/s;JT2 180°/s;JT3 175°/s;JT4 360°/s | Inertia — JT4 13.7 kg·m² | 0 - 45 °C;35 - 85%(No dew, nor frost allowed) | F03/12kVA | / | Request this model |
No matching Kawasaki model was found. Clear one or more filters or send the required payload, working envelope, application and mounting for a project review.
Selection note: Choose the application family before optimizing payload and reach; process equipment and controller requirements can determine the final robot.
Kawasaki robots and automation solutions FAQ
Which Kawasaki robot series fit handling, welding or palletizing applications?
The page includes general-purpose R-series robots, BA and RA welding robots, CP and RD palletizing robots, YF delta robots and several large-payload families. Use the application field with payload, reach, wrist load, mounting and cycle requirements to build the shortlist.
Why should Kawasaki robot wrist load be checked in addition to payload?
Robot payload is only one limit. The tool and workpiece center of gravity, wrist moment and inertia, robot pose and acceleration can determine whether the load case is acceptable, even when the total mass is below the headline payload.
Can EVST review the controller and automation cell with a Kawasaki robot?
Yes. The review can cover the robot and controller, tooling, process equipment, fixtures, safety, PLC and network interfaces, installation environment, commissioning and service scope.
What information is needed for a Kawasaki robot quote?
Provide the exact model or application, tool and product load, center of gravity, required reach and poses, cycle target, mounting, environment, controller and interface needs, quantity, destination and timing.
