CHAIFU Industrial Robots: Models and Selection Guide
Compare CHAIFU robots across SCARA, six-axis, palletizing, stamping, welding and other industrial categories. Choose the application category first, then screen axes, payload, reach, mounting and protection for the intended cell.
55 Searchable ModelsNine Application CategoriesRobot and Cell-Level Review
How to select a CHAIFU robot category
Use the production task to choose the robot category before comparing individual specifications. Axes, payload and reach establish the first shortlist, while mounting, protection, process equipment and cycle requirements determine whether a model fits the cell.
Start with the categorySeparate SCARA, six-axis, palletizing, stamping, welding and other task types.
Compare within the categoryUse axes, payload, reach, repeatability and mounting to narrow suitable models.
Define the full solutionConfirm tooling, process equipment, controls, safety, interfaces and commissioning.
Configuration confirmation: CHAIFU robot availability, exact variant, controller, options, tooling, safety, price, lead time, destination, warranty, service and compliance are confirmed for the requested configuration. The model table does not by itself define the complete automation package.
Compare CHAIFU robot models by category
Filter by model, category, axes, payload and reach. Compare candidates within the same application class, then verify installation, protection, tooling and cycle requirements for the real production task.
Showing 55 of 55 models
Move the table horizontally
| Product image | Model | Category | Axes | Payload | Reach | Repeatability | Body mass | Protection | Installation | Joint range / maximum speed | Allowable wrist load | Environment | Base / height / power | Next action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | SF7-K759 | PRENTIC desktop robot | 6 | 7 kg | 737.5 mm | ±0.03 mm | 48 kg | IP65 | Floor | J1 ±171° @ 305°/s;J2 +65°/-141° @ 280°/s;J3 +170°/-66° @ 300°/s;J4 ±180° @ 300°/s;J5 ±119° @ 406°/s;J6 ±360° @ 600°/s | Moment — J4 15.6 N·m;J5 15.6 N·m;J6 8.5 N·m |Inertia — J4 0.43 kg·m²;J5 0.43 kg·m²;J6 0.13 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 210*235mm;Body height 880mm;Power capacity 1.5kVA | Request this model |
 | SF8-K950 | PRENTIC desktop robot | 6 | 8 kg | 956 mm | ±0.03 mm | 66 kg | IP65 | Any orientation | J1 ±165° @ 230°/s;J2 +90°/-160° @ 230°/s;J3 +148°/-89° @ 200°/s;J4 ±180° @ 240°/s;J5 ±119° @ 400°/s;J6 ±360° @ 600°/s | Moment — J4 15.6 N·m;J5 15.6 N·m;J6 8.5 N·m |Inertia — J4 0.43 kg·m²;J5 0.43 kg·m²;J6 0.13 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 280*362mm;Body height 911.5mm;Power capacity 1.5kVA | Request this model |
 | ARC6-140-6 | ARC welding robot | 6 | 6 kg | 1440 mm | ±0.05 mm | 150 kg | IP65 | Any orientation | J1 ±170° @ 240°/s;J2 +90°/-155° @ 240°/s;J3 +169°/-86° @ 260°/s;J4 ±155° @ 400°/s;J5 +134°/-137° @ 400°/s;J6 ±220° @ 700°/s | Moment — J4 15.6 N·m;J5 15.6 N·m;J6 8.5 N·m |Inertia — J4 0.43 kg·m²;J5 0.43 kg·m²;J6 0.13 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 355*355mm;Body height 1375mm;Power capacity 3kVA | Request this model |
 | ARC6-208-6 | ARC welding robot | 6 | 6 kg | 2008 mm | ±0.05 mm | 280 kg | IP65 | Any orientation | J1 ±170° @ 190°/s;J2 +100°/-157° @ 190°/s;J3 +90°/-80° @ 190°/s;J4 ±155° @ 400°/s;J5 +134°/-137° @ 400°/s;J6 ±220° @ 700°/s | Moment — J4 10 N·m;J5 10 N·m;J6 5.5 N·m |Inertia — J4 0.28 kg·m²;J5 0.28 kg·m²;J6 0.06 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 396*396mm;Body height 1640mm;Power capacity 3.8kVA | Request this model |
 | ARC10-145-6 | ARC welding robot | 6 | 10 kg | 1450 mm | ±0.08 mm | 160 kg | IP65 | Any orientation | J1 ±170° @ 240°/s;J2 +90°/-155° @ 240°/s;J3 +98°/-82° @ 200°/s;J4 ±170° @ 200°/s;J5 ±119° @ 360°/s;J6 ±220° @ 600°/s | Moment — J4 20.5 N·m;J5 10 N·m |Inertia — J4 0.43 kg·m²;J5 0.12 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 355*355mm;Body height 1269mm;Power capacity 3.8kVA | Request this model |
 | SF6-C1200 | LOTIC low-payload robot | 6 | 6 kg | 1200 mm | ±0.05 mm | 72 kg | IP65 | Any orientation | J1 ±165° @ 230°/s;J2 +90°/-165° @ 230°/s;J3 +150°/-90° @ 200°/s;J4 ±180° @ 240°/s;J5 ±120° @ 400°/s;J6 ±360° @ 600°/s | Moment — J4 15.6 N·m;J5 15.6 N·m;J6 8.5 N·m |Inertia — J4 0.43 kg·m²;J5 0.43 kg·m²;J6 0.13 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 280*362mm;Body height 1096mm;Power capacity 1.5kVA | Request this model |
 | SF10-C1650 | LOTIC low-payload robot | 6 | 10 kg | 1651 mm | ±0.05 mm | 196 kg | IP65 | Any orientation | J1 ±165° @ 150°/s;J2 +75°/-125° @ 160°/s;J3 +145°/-75° @ 148°/s;J4 ±178° @ 300°/s;J5 ±125° @ 300°/s;J6 ±720° @ 500°/s | Moment — J4 22 N·m;J5 22 N·m;J6 10 N·m |Inertia — J4 1 kg·m²;J5 1 kg·m²;J6 0.2 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 384*384mm;Body height 1407mm;Power capacity 2.5kVA | Request this model |
 | SF10-K2032 | LOTIC low-payload robot | 6 | 10 kg | 2032 mm | ±0.05 mm | 208 kg | IP65 | Any orientation | J1 ±175° @ 135°/s;J2 +68°/-150° @ 135°/s;J3 +150°/-75° @ 135°/s;J4 ±178° @ 300°/s;J5 +135/-125° @ 300°/s;J6 ±720° @ 500°/s | Moment — J4 22 N·m;J5 22 N·m;J6 10 N·m |Inertia — J4 1 kg·m²;J5 1 kg·m²;J6 0.2 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 370*370mm;Body height 1560mm;Power capacity 3.25kVA | Request this model |
 | SF10-K3100 | LOTIC low-payload robot | 6 | 10 kg | 3100 mm | ±0.05 mm | 596 kg | IP65 | Any orientation | J1 ±172° @ 125°/s;J2 +72°/-140° @ 125°/s;J3 +150°/-80° @ 140°/s;J4 ±360° @ 200°/s;J5 ±125° @ 210°/s;J6 ±360° @ 290°/s | Moment — J4 22 N·m;J5 22 N·m;J6 10 N·m |Inertia — J4 1 kg·m²;J5 1 kg·m²;J6 0.2 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 573*629mm;Body height 1899mm;Power capacity 4.5kVA | Request this model |
 | SF20-K1735 | MIMETIC medium-payload robot | 6 | 20 kg | 1735 mm | ±0.06 mm | 206 kg | IP65 | Any orientation | J1 ±175° @ 135°/s;J2 +68°/-150° @ 135°/s;J3 +150°/-75° @ 135°/s;J4 ±178° @ 300°/s;J5 +135°/-125° @ 300°/s;J6 ±720° @ 500°/s | Moment — J4 42 N·m;J5 42 N·m;J6 23 N·m |Inertia — J4 1.26 kg·m²;J5 1.26 kg·m²;J6 0.49 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 370*370mm;Body height 1560mm;Power capacity 3.25kVA | Request this model |
 | SF20-C2150 | MIMETIC medium-payload robot | 6 | 20 kg | 2150 mm | ±0.06 mm | 246 kg | IP65 | Any orientation | J1 ±170° @ 140°/s;J2 +100°/-157° @ 140°/s;J3 +95°/-80° @ 140°/s;J4 ±180° @ 350°/s;J5 +125°/-125° @ 230°/s;J6 ±720° @ 250°/s | Moment — J4 42 N·m;J5 42 N·m;J6 23 N·m |Inertia — J4 1.26 kg·m²;J5 1.26 kg·m²;J6 0.49 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 396*396mm;Body height 1618.5mm;Power capacity 3.8kVA | Request this model |
 | ARC25-183-6 | MIMETIC medium-payload robot | 6 | 25 kg | 1830 mm | ±0.06 mm | 227 kg | IP65 | Any orientation | J1 ±170° @ 170°/s;J2 +100°/-157° @ 170°/s;J3 +98°/-76° @ 170°/s;J4 ±180° @ 350°/s;J5 +125°/-125° @ 230°/s;J6 ±720° @ 230°/s | Moment — J4 42 N·m;J5 42 N·m;J6 23 N·m |Inertia — J4 1.26 kg·m²;J5 1.26 kg·m²;J6 0.49 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 396*396mm;Body height 1602.5mm;Power capacity 4kVA | Request this model |
 | SF25-C1887 | MIMETIC medium-payload robot | 6 | 25 kg | 1887 mm | ±0.06 mm | 293 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±170° @ 185°/s;J2 +100°/-157° @ 185°/s;J3 +90°/-80° @ 210°/s;J4 ±170° @ 380°/s;J5 ±130° @ 300°/s;J6 ±220° @ 350°/s | / | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 396*396mm;Body height 1561mm;Power capacity 3.8kVA | Request this model |
 | SF30-C1850 | MIMETIC medium-payload robot | 6 | 30 kg | 1856 mm | ±0.06 mm | 228 kg | IP65 | Any orientation | J1 ±170° @ 170°/s;J2 +100°/-157° @ 170°/s;J3 +98°/-76° @ 170°/s;J4 ±180° @ 350°/s;J5 +125°/-125° @ 230°/s;J6 ±720° @ 230°/s | Moment — J4 42 N·m;J5 42 N·m;J6 23 N·m |Inertia — J4 1.26 kg·m²;J5 1.26 kg·m²;J6 0.49 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 396*396mm;Body height 1602.5mm;Power capacity 3.8kVA | Request this model |
 | SF50-C2185 | MIMETIC medium-payload robot | 6 | 50 kg | 2185 mm | ±0.06 mm | 550 kg | IP65 | Any orientation | J1 ±172° @ 109°/s;J2 +72°/-140° @ 125°/s;J3 +172°/-78° @ 140°/s;J4 ±360° @ 200°/s;J5 +124°/-121° @ 210°/s;J6 ±360° @ 190°/s | Moment — J4 185 N·m;J5 185 N·m;J6 126 N·m |Inertia — J4 12 kg·m²;J5 12 kg·m²;J6 9.6 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 630*570mm;Body height 1820mm;Power capacity 5kVA | Request this model |
 | SF80-C2600 | MIMETIC medium-payload robot | 6 | 80 kg | 2600 mm | ±0.06 mm | 726 kg | IP65 | Any orientation | J1 ±172° @ 160°/s;J2 +72°/-140° @ 110°/s;J3 +160°/-78° @ 120°/s;J4 ±360° @ 162°/s;J5 +120°/-120° @ 180°/s;J6 ±360° @ 300°/s | Moment — J4 360 N·m;J5 360 N·m;J6 186 N·m |Inertia — J4 52 kg·m²;J5 52 kg·m²;J6 26 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 578x573mm;Body height 1898mm;Power capacity 5.5kKVA | Request this model |
 | SF120-C2269 | MIMETIC medium-payload robot | 6 | 120 kg | 2269 mm | ±0.06 mm | 720 kg | IP65 | Any orientation | J1 ±172° @ 160°/s;J2 +72°/-140° @ 110°/s;J3 +160°/-78° @ 120°/s;J4 ±360° @ 162°/s;J5 +120°/-120° @ 180°/s;J6 ±360° @ 200°/s | Moment — J4 360 N·m;J5 360 N·m;J6 186 N·m |Inertia — J4 52 kg·m²;J5 52 kg·m²;J6 26 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 573*629mm;Body height 1939mm;Power capacity 5.5kKVA | Request this model |
 | CF120-C1900 PM | MIMETIC medium-payload robot | 4 | 120 kg | 1900 mm | ±0.06 mm | 1536 kg | Base axis IP65 / wrist axis IP67 | Any orientation | J1 ±180° @ 115°/s;J2 -140°/+150° @ 176°/s;J3 ±180° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 750*520mm;Body height 3117.5mm;Power capacity 5kVA | Request this model |
 | SF125-C3100 | MIMETIC medium-payload robot | 6 | 125 kg | 3100.7 mm | ±0.06 mm | 1476 kg | Base axis IP65 / wrist axis IP67 | Any orientation | J1 +50°/-75° @ 110°/s;J2 +90°/-1095mm @ 83°/s;J3 ±185° @ 99°/s;J4 ±144° @ 158°/s;J5 ±360° @ 150°/s | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 750*520mm;Body height 2343.5mm;Power capacity 8.4kVA | Request this model |
 | SF125-C3100D | MIMETIC medium-payload robot | 6 | 125 kg | 3100 mm | ±0.05 mm | 1109 kg | Base axis IP65 / wrist axis IP67 | Any orientation | J1 +170°/-40° @ 110°/s;J2 +90°/-83° @ 100°/s;J3 ±360° @ 110°/s;J4 ±120° @ 162°/s;J5 ±360° @ 180°/s | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 660*726mm;Body height 1953.5mm;Power capacity 8.4kVA | Request this model |

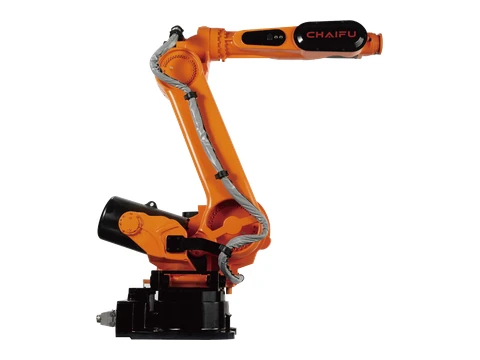

 | SF210-K2650 | BIOTIC high-payload robot | 6 | 210 kg | 2650 mm | ±0.06 mm | 1460 kg | IP65 | Floor | J1 ±180° @ 110°/s;J2 +50°/-75° @ 83°/s;J3 +90°/-70° @ 99°/s;J4 ±185° @ 158°/s;J5 ±120° @ 206°/s;J6 ±360° @ 300°/s | Moment — J4 1301 N·m;J5 1301 N·m;J6 706 N·m |Inertia — J4 138 kg·m²;J5 138 kg·m²;J6 70 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 750*520mm;Body height 2257.5mm;Power capacity 7.5kKVA | Request this model |
 | SF300-C3100 | BIOTIC high-payload robot | 6 | 300 kg | 3100 mm | ±0.06 mm | 1970 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 110°/s;J2 +45°/-80° @ 106°/s;J3 +15.5°/-120° @ 106°/s;J4 ±360° @ 130°/s;J5 ±115° @ 120°/s;J6 ±360° @ 165°/s | Moment — J4 865 N·m |Inertia — J4 152 kg·m²;J5 152 kg·m²;J6 122 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 710*700mm;Body height 2568mm;Power capacity 8.5kVA | Request this model |

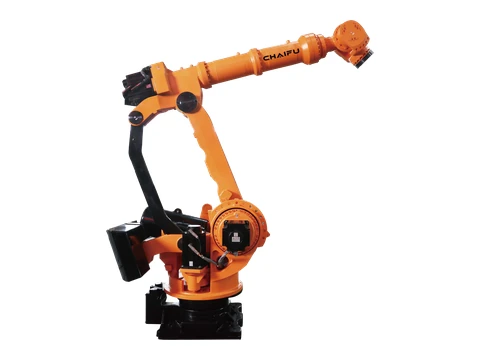

 | SF500-C3100 | ALPHTIC heavy-duty six-axis robot | 6 | 500 kg | 3273.6 mm | ±0.1 mm | 2780 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 100°/s;J2 +50°/-85° @ 85°/s;J3 +25°/-120° @ 85°/s;J4 ±360° @ 80°/s;J5 ±115° @ 80°/s;J6 ±360° @ 160°/s | Moment — J4 1980 N·m;J5 1980 N·m;J6 865 N·m |Inertia — J4 152 kg·m²;J5 152 kg·m²;J6 122 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2755.5mm;Power capacity 8.5kVA | Request this model |

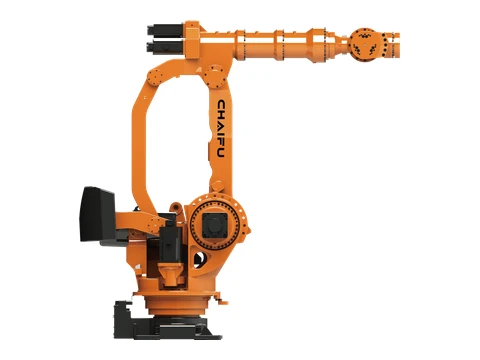

 | SF800-C2850 | ALPHTIC heavy-duty six-axis robot | 6 | 800 kg | 2850 mm | ±0.1 mm | 2965 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 93°/s;J2 +50°/-85° @ 64°/s;J3 +25°/-120° @ 65°/s;J4 ±360° @ 100°/s;J5 ±115° @ 88°/s;J6 ±360° @ 133°/s | Moment — J4 865 N·m |Inertia — J4 152 kg·m²;J5 152 kg·m²;J6 122 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2695mm;Power capacity 8.7kVA | Request this model |

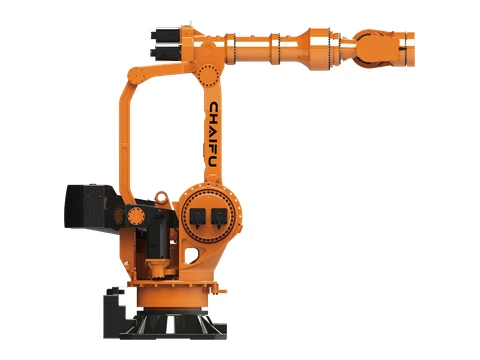

 | SF1200-C3765 | ALPHTIC heavy-duty six-axis robot | 6 | 1200 kg | 3765 mm | ±0.2 mm | 8160 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 45°/s;J2 +50°/-90° @ 30°/s;J3 +20°/-126° @ 30°/s;J4 ±360° @ 50°/s;J5 ±115° @ 52°/s;J6 ±360° @ 72°/s | Moment — J4 14600 N·m;J5 14600 N·m;J6 4850 N·m |Inertia — J4 2960 kg·m²;J5 2916 kg·m²;J6 2089 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1180*1180mm;Body height 3548mm;Power capacity 16kVA | Request this model |
 | SF1500-C3870 | ALPHTIC heavy-duty six-axis robot | 6 | 1500 kg | 3872 mm | ±0.23 mm | 11200 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 43°/s;J2 +50°/-85° @ 25°/s;J3 -20°/-120° @ 25°/s;J4 ±360° @ 43°/s;J5 ±115° @ 40°/s;J6 ±360° @ 56°/s | Moment — J4 14380 N·m;J5 14380 N·m;J6 4980 N·m |Inertia — J4 2916 kg·m²;J5 2916 kg·m²;J6 2089 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1280*1380mm;Body height 3483mm;Power capacity 17kVA | Request this model |
 | SF1800-C4600 | ALPHTIC heavy-duty six-axis robot | 6 | 1800 kg | 4600 mm | ±0.3 mm | 17880 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 20°/s;J2 +50°/-85° @ 12°/s;J3 +20°/-120° @ 12°/s;J4 ±360° @ 19°/s;J5 ±115° @ 19°/s;J6 ±360° @ 40°/s | Moment — J4 29500 N·m;J5 29500 N·m;J6 8930 N·m |Inertia — J4 7650 kg·m²;J5 7650 kg·m²;J6 5620 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3875mm;Power capacity 22.5kVA | Request this model |

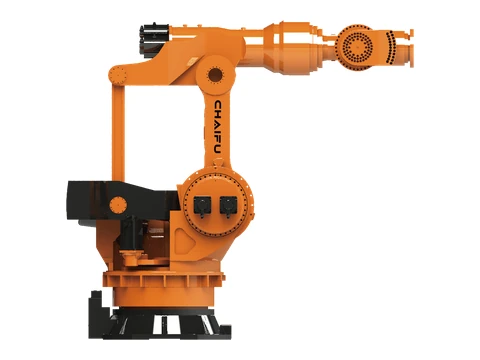

 | SF2000-C4000 | ALPHTIC heavy-duty six-axis robot | 6 | 2000 kg | 4000 mm | ±0.3 mm | 17820 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 20°/s;J2 +50°/-85° @ 12°/s;J3 -120°/+20° @ 12°/s;J4 ±360° @ 19°/s;J5 ±115° @ 19°/s;J6 ±360° @ 40°/s | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3875mm;Power capacity 18.2kVA | Request this model |

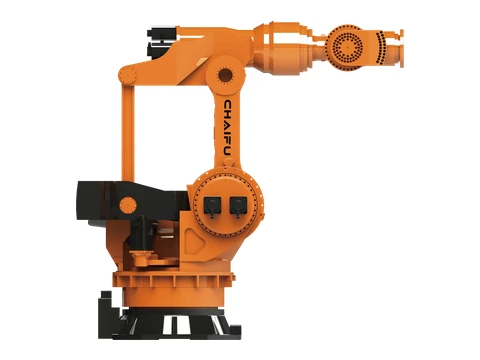

 | SF2400-C3760 | ALPHTIC heavy-duty six-axis robot | 6 | 2400 kg | 3758.8 mm | ±0.3 mm | 17600 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 20°/s;J2 +53°/-85° @ 12°/s;J3 -113°/+22.5° @ 12°/s;J4 ±360° @ 19°/s;J5 ±115° @ 19°/s;J6 ±360° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3875mm;Power capacity 20.5kVA | Request this model |
 | SF3000-C3760 | ALPHTIC heavy-duty six-axis robot | 6 | 3000 kg | 3758.8 mm | ±0.3 mm | 17660 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 16°/s;J2 +53°/-80° @ 12°/s;J3 +22.5°/-113° @ 12°/s;J4 ±360° @ 16°/s;J5 ±115° @ 16°/s;J6 ±360° @ 32°/s | Moment — J4 31500 N·m;J5 31500 N·m;J6 8980 N·m |Inertia — J4 7680 kg·m²;J5 7680 kg·m²;J6 5680 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3875mm;Power capacity 23.5kVA | Request this model |
 | SF4000-C4200 | ALPHTIC heavy-duty six-axis robot | 6 | 4000 kg | 4198 mm | ±0.3 mm | 19182 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +53°/-80° @ 8°/s;J3 +22°/-115° @ 8°/s;J4 ±360° @ 9°/s;J5 ±115° @ 8°/s;J6 ±360° @ 15°/s | Moment — J4 63520 N·m;J5 63520 N·m;J6 17262 N·m |Inertia — J4 15265 kg·m²;J5 15265 kg·m²;J6 11366 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3660mm;Power capacity 23.5kVA | Request this model |
 | SF5000-C3700 | ALPHTIC heavy-duty six-axis robot | 6 | 5000 kg | 3700 mm | ±0.3 mm | 26800 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +53°/-80° @ 8°/s;J3 +22°/-115° @ 8°/s;J4 ±360° @ 9°/s;J5 ±115° @ 8°/s;J6 ±360° @ 15°/s | Moment — J4 63520 N·m;J5 63520 N·m;J6 17262 N·m |Inertia — J4 15265 kg·m²;J5 15265 kg·m²;J6 11366 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3660mm;Power capacity 23.5kVA | Request this model |
 | SF6000-C3285 | ALPHTIC heavy-duty six-axis robot | 6 | 6000 kg | 3285 mm | ±0.3 mm | 26700 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +53°/-80° @ 8°/s;J3 +22°/-115° @ 8°/s;J4 ±360° @ 9°/s;J5 ±115° @ 8°/s;J6 ±360° @ 15°/s | Moment — J4 63520 N·m;J5 63520 N·m;J6 17262 N·m |Inertia — J4 15265 kg·m²;J5 15265 kg·m²;J6 11366 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1670mm;Body height 3660mm;Power capacity 23.5kVA | Request this model |
 | SF15-C1538 PA | PRESS stamping robot | 4 | 15 kg | 1610 mm | ±0.06 mm | 181 kg | IP65 | Any orientation | J1 ±165° @ 150°/s;J2 +40°/-82° @ 150°/s;J3 +78°/-75° @ 160°/s;J4 ±360° @ 300°/s;J5 -100°SJ2+J3<+30° @ / | Moment — J4 196 N·m |Inertia — J4 0.52 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 384*384mm;Body height 1421mm;Power capacity 2.5kVA | Request this model |

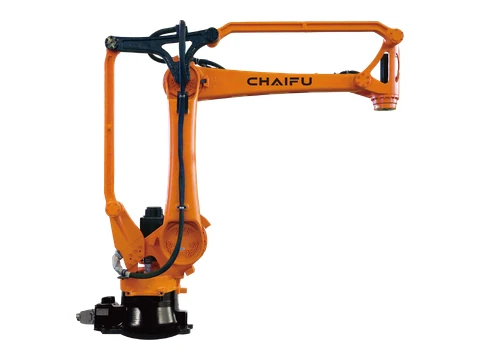

 | SF25-C1760 PA | PRESS stamping robot | 4 | 25 kg | 1772 mm | ±0.07 mm | 260 kg | IP65 | Any orientation | J1 ±175° @ 130°/s;J2 +48°/-95° @ 107°/s;J3 +80°/-75° @ 135°/s;J4 ±360° @ 175°/s;J5 -110°SJ2+J3<+40° @ / | Moment — J4 882 N·m |Inertia — J4 0.62 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 370*370mm;Body height 1458mm;Power capacity 3kVA | Request this model |
| SF25-C1900 PA | PRESS stamping robot | 4 | 25 kg | 1900 mm | ±0.07 mm | 262.5 kg | IP65 | Any orientation | J1 ±175° @ 130°/s;J2 +48°/-95° @ 107°/s;J3 +50°/-75° @ 135°/s;J4 ±360° @ 175°/s | Moment — J4 882 N·m |Inertia — J4 0.62 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 370*370mm;Body height 1495mm;Power capacity 3kVA | Request this model |
| SF40-C1900 PA | PRESS stamping robot | 4 | 40 kg | 1900 mm | ±0.07 mm | 262.5 kg | IP65 | Any orientation | J1 ±175° @ 130°/s;J2 +48°/-95° @ 107°/s;J3 +50°/-75° @ 135°/s;J4 ±360° @ 175°/s;J5 -110°SJ2+J3<+50° @ / | / | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 370*370mm;Body height 1495mm;Power capacity 3kVA | Request this model |

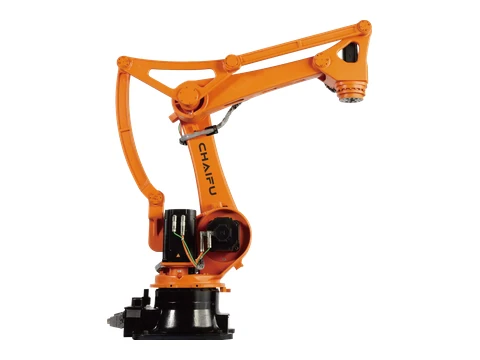

 | SF50-C2220 PA | PA palletizing robot | 4 | 50 kg | 2220 mm | ±0.1 mm | 616 kg | IP65 | Floor | J1 ±178° @ 125°/s;J2 +50°/-95° @ 125°/s;J3 +85°/-72° @ 140°/s;J4 ±360° @ 200°/s | Moment — J4 1666 N·m |Inertia — J4 9.6 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 573x573mm;Body height 1791mm;Power capacity 4kVA | Request this model |

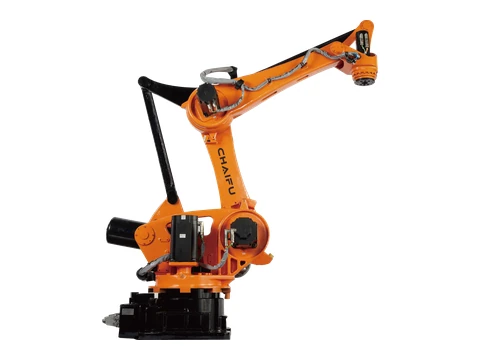

 | SF130-C2700 PA | PA palletizing robot | 4 | 130 kg | 2735 mm | ±0.12 mm | 1160 kg | IP65 | Floor | J1 +/-180° @ 178°/s;J2 +45°/-90° @ 112°/s;J3 +85°/-55° @ 105°/s;J4 +/-360° @ 340°/s;J5 -105°SJ2+J3<+25° @ / | Moment — J4 1764 N·m |Inertia — J4 36 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 620*620mm;Body height 2050mm;Power capacity 5.5kVA | Request this model |

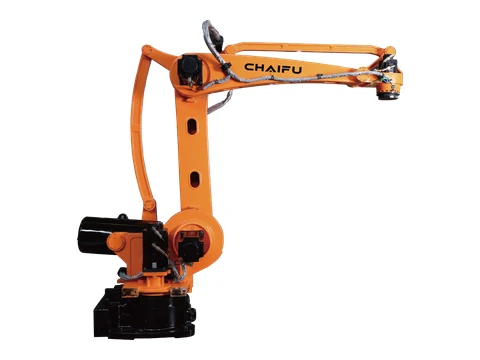

 | SF180-C3200 PA | PA palletizing robot | 4 | 180 kg | 3245.5 mm | ±0.25 mm | 1380 kg | IP65 | Floor | J1 +/-180° @ 105°/s;J2 -90°/+45° @ 105°/s;J3 -75°/+110° @ 105°/s;J4 ±360° @ 260°/s;J5 -115°SJ2+J3<+22.5° @ / | Moment — J4 1764 N·m |Inertia — J4 36 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 750*520mm;Body height 2401mm;Power capacity 6kVA | Request this model |

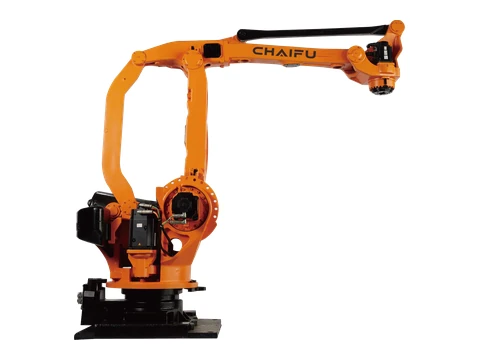

 | SF210-K3200 PA | PA palletizing robot | 4 | 210 kg | 3200 mm | ±0.12 mm | 1950 kg | IP65 | Floor | J1 ±180° @ 120°/s;J2 +44°/-80° @ 140°/s;J3 +15.5°/-115° @ 140°/s;J4 ±360° @ 305°/s;J5 -72°SJ3+J2<+67.5° @ / | Moment — J4 1666 N·m |Inertia — J4 80 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 710*700mm;Body height 2463mm;Power capacity 6.5kVA | Request this model |
 | SF300-C3200 PA | PA palletizing robot | 4 | 300 kg | 3200 mm | ±0.15 mm | 1950 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 +44°/-80 @ 90°/s;J2 +15,59°/-115° @ 100°/s;J3 ±360° @ 100°/s;J4 -155°SJ2+J3<+25° @ 300°/s;J5 -72°<J3-J2<67.5° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 710*700mm;Body height 2463mm;Power capacity 8.2kVA | Request this model |

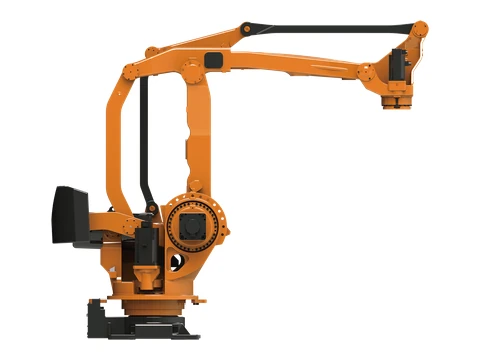

 | SF500-C3200 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 500 kg | 3177 mm | ±0.2 mm | 2960 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 90°/s;J2 +53°/-85° @ 90°/s;J3 +15.5°/-113° @ 90°/s;J4 ±360° @ 125°/s;J5 -130°SJ2+J3S+60° @ /;J6 -68°SJ3-J2S+75° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2629mm;Power capacity SkVA | Request this model |

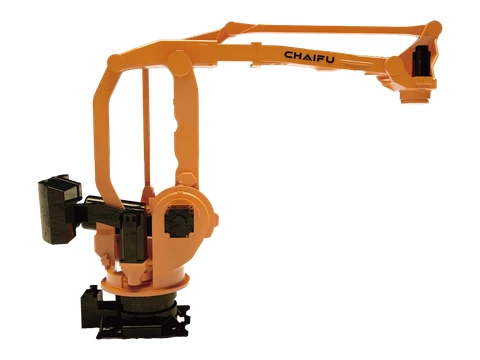

 | SF600-C3500 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 600 kg | 3500 mm | ±0.2 mm | 3006 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 60°/s;J2 +53°/-85° @ 60°/s;J3 +15.5°/-113° @ 60°/s;J4 ±360° @ 125°/s;J5 -130°SJ2+J35+60° @ /;J6 -68°SJ3-J25+75° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2629mm;Power capacity SkVA | Request this model |

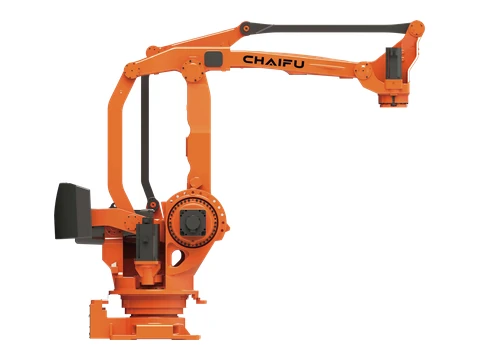

 | SF800-C3200 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 800 kg | 3177 mm | 0.3 mm | 2968 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 60°/s;J2 +53°/-85° @ 60°/s;J3 +15.5°/-113° @ 60°/s;J4 ±360° @ 125°/s;J5 -130°SJ2+J3=+60° @ /;J6 -68°S]3-J2S+75° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2629mm;Power capacity SkVA | Request this model |

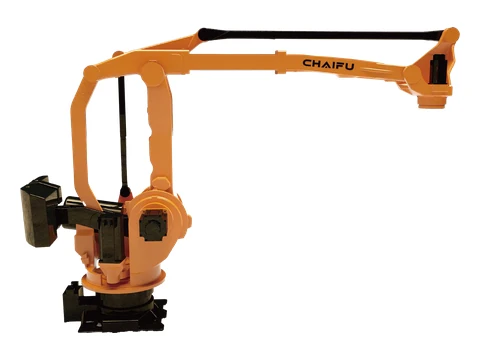

 | SF800-C4000 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 800 kg | 4000 mm | 0.3 mm | 3096 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 +53°/-85 @ 58°/s;J2 +15.5°/-113 @ 45°/s;J3 -130°SJ2+J3<+60 @ 45°/s;J4 -68°SJ3-J2<5+75 @ 141°/s | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 910*739mm;Body height 2621mm;Power capacity SkVA | Request this model |

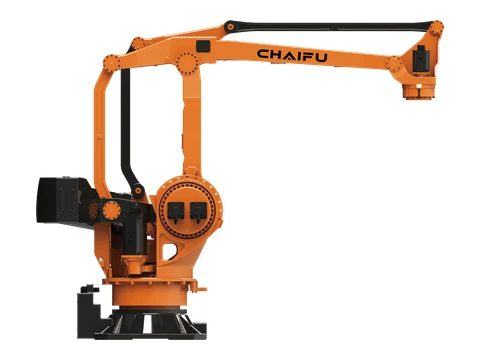

 | SF1200-C4360 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 1200 kg | 4360 mm | ±0.5 mm | 6302 kg | Base axis IP65 / wrist axis IP67 | Any orientation | J1 ±180° @ 56°/s;J2 +50°/-90° @ 58°/s;J3 +20°/-115° @ 60°/s;J4 ±360° @ 125°/s;J5 -70°S}3-J2=+70° @ / | / | 0°C - 45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1180*1180mm;Body height 3387mm;Power capacity 14.5kVA | Request this model |
 | SF1200-C4600 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 1200 kg | 4600 mm | ±0.5 mm | 7192 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 50°/s;J2 +50°/-90° @ 52°/s;J3 +23°/-115° @ 58°/s;J4 ±360° @ 115°/s;J5 -70°SJ3-J2S+70° @ / | Moment — J4 8820 N·m |Inertia — J4 2608 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1180*1180mm;Body height 3386mm;Power capacity 14.5kVA | Request this model |

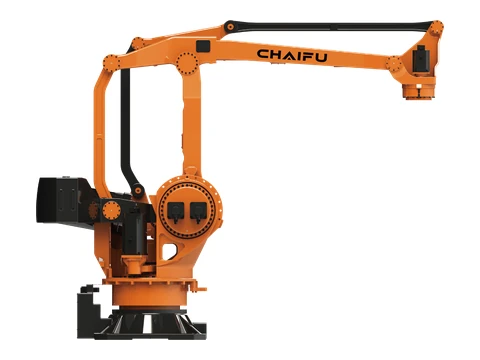

 | SF1600-C4000 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 1600 kg | 3966 mm | ±0.8 mm | 6116 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 45°/s;J2 +50°/-90° @ 30°/s;J3 +20°/-115° @ 30°/s;J4 ±360° @ 70°/s | Moment — J4 8550 N·m |Inertia — J4 5340 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1180*1180mm;Body height 3386mm;Power capacity 15kVA | Request this model |
 | SF2000-C4090 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 2000 kg | 4090 mm | ±0.8 mm | 10460 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 43°/s;J2 +50°/-82° @ 25°/s;J3 +20°/-115° @ 25°/s;J4 ±360° @ 60°/s;J5 -72°S)3-J2S+72° @ / | Moment — J4 12740 N·m |Inertia — J4 3260 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1280*1380mm;Body height 3418mm;Power capacity 15.5kVA | Request this model |
 | SF2400-C4200 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 2400 kg | 4200 mm | ±0.8 mm | 12590 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 20°/s;J2 +53°/-85° @ 12°/s;J3 +20°/-110° @ 12°/s;J4 ±360° @ 40°/s;J5 -63°SJ3-J2S+65° @ / | Moment — J4 20580 N·m |Inertia — J4 3912 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1660mm;Body height 3683mm;Power capacity 16.5kVA | Request this model |
 | SF3000-C4200 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 3000 kg | 4200 mm | ±0.8 mm | 12600 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 20°/s;J2 +53°/-85° @ 12°/s;J3 +20°/-110° @ 12°/s;J4 ±360° @ 40°/s;J5 -63°S)]3-J2=+65° @ / | Inertia — J4 4890 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1660mm;Body height 3683mm;Power capacity 18kVA | Request this model |
 | SF4000-C4600 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 4000 kg | 4600.8 mm | ±0.8 mm | 17220 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +50°/-80° @ 8°/s;J3 -118°/+22° @ 8°/s;J4 ±360° @ 15°/s;J5 -60°S}]3-J2=+60° @ / | Moment — J4 46890 N·m |Inertia — J4 6357 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1660mm;Body height 3683mm;Power capacity 18kVA | Request this model |

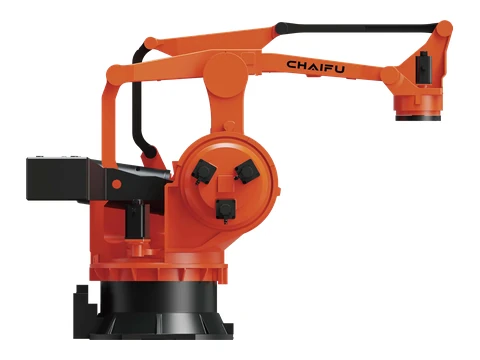

 | SF5000-C4000 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 5000 kg | 3994 mm | ±1 mm | 17120 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +50°/-80° @ 8°/s;J3 -118°/+22° @ 8°/s;J4 ±360° @ 15°/s;J5 -60°SJ3-J2=+60° @ / | Moment — J4 46890 N·m |Inertia — J4 7628 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1660mm;Body height 3683mm;Power capacity 18kVA | Request this model |

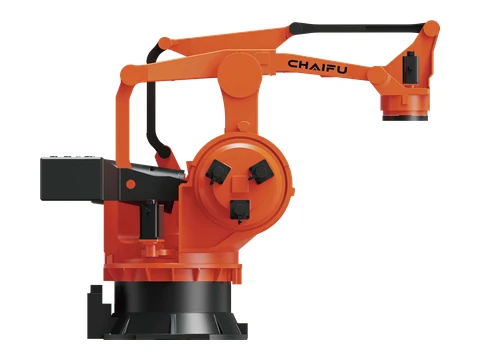

 | SF6000-C3700 PA | ALPHTIC PA heavy-duty four-axis robot | 4 | 6000 kg | 3701 mm | ±1 mm | 16690 kg | Base axis IP65 / wrist axis IP67 | Floor | J1 ±180° @ 10°/s;J2 +50°/-80° @ 8°/s;J3 -118°/+22° @ 8°/s;J4 ±360° @ 15°/s;J5 -60°S)]3-J2=+60° @ / | Moment — J4 46890 N·m |Inertia — J4 9156 kg·m² | 0°C-45°C;≤95% RH(no condensation);Vibration ≤4.9 m/s² | Base 1580*1660mm;Body height 3683mm;Power capacity 18kVA | Request this model |
No matching CHAIFU model was found. Clear a filter or send the required payload, reach and application.
Selection note: Choose the application category before comparing axes, payload and reach; installation and process equipment can change the final selection.
CHAIFU robots and automation solutions FAQ
Which CHAIFU robot series fit welding, palletizing, stamping or heavy-duty handling?
The page includes ARC welding, PA palletizing, PRESS stamping and several low-, medium-, high- and heavy-payload articulated ranges. Use the application group with payload, reach, joint performance, mounting and wrist-load requirements to build the shortlist.
What should be checked beyond CHAIFU robot payload and reach?
Check tooling and part center of gravity, inertia, required poses, wrist moment, joint ranges and speeds, mounting, protection, environment, controller, process equipment, safety and cycle target before confirming a model.
Can EVST review a CHAIFU robot as part of a welding, palletizing or handling cell?
Yes. The scope can include the robot and controller, tooling, welding or handling equipment, fixtures, PLC and networks, vision, safety, commissioning and delivery responsibilities.
What should I provide for a CHAIFU robot quote?
Provide the exact model or application, total payload, reach and poses, cycle target, mounting, environment, controller and interface needs, tooling, quantity, destination and requested timing.
Author: EVST Editorial Team
The EVST Editorial Team maintains this page to support robot selection and project planning. Product availability, configuration, safety validation and integration scope must be confirmed for the actual application.
