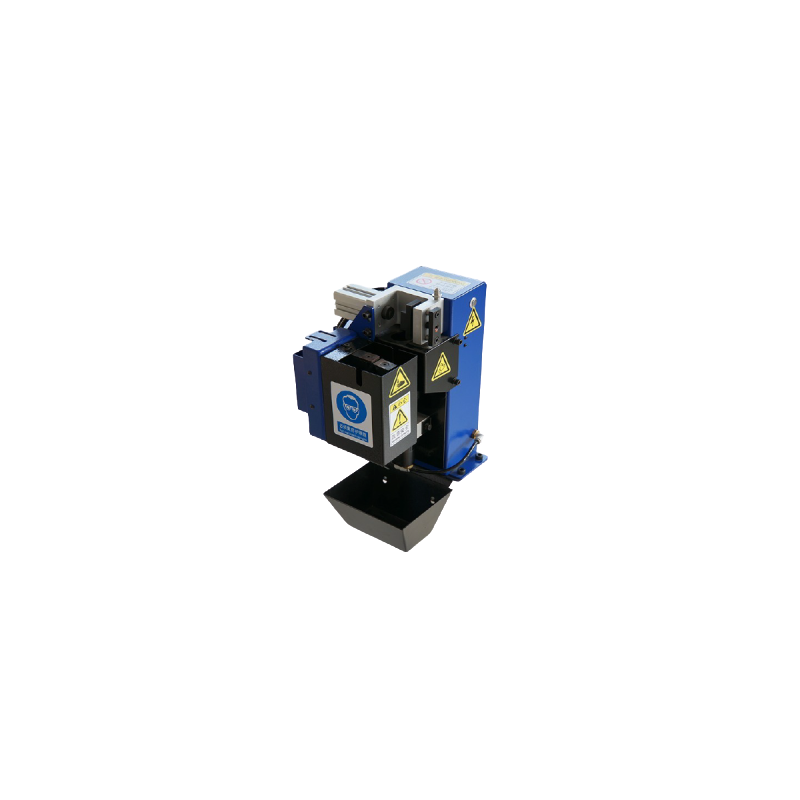

Torch Cleaning Machine
- This torch cleaning machine consists of two separated station, which are wire cutting and cleaning/oil spouting. It can be attached to the welding table or it can be installed on a aluminum platform, with pneumatic motor the cleaning efficiency is very high. It can work with any robot brand.
- Cutting and cleaning seperated
- High cleaning effeciency
- Alternative cutting knife
Database Download
- 3D Drawings
- Maintenance Manuals
- Instructions
Updating
Updating
Updating
Technical Parameters
| Compressed air supply outlet | G1/4” |
| Hose inside diameter | min.∅6mm |
| Normal pressure | 6bar |
| Operation pressure | 6-8bar |
| Control voltage | 24V DC |
| Power demand | 2.8W |
| Operation voltage | 10-30V DC |
| Current consumption | Approx. 4mA(24V) |
| Continuous current | Max. 100mA |
| Pneumatic motor speed | Approx. 650U/min |
| Air consumption | Approx. 400L/min |
| Bottle capacity | 1 Liter |
| Cutting rate at 6 bar | |
| Solid wire | Min. 1.2mm |
| Cutting time | 1s |
