6kg Payload 600mm 4 Axis High Speed High Rigidity SCARA Robot EVS6-600H

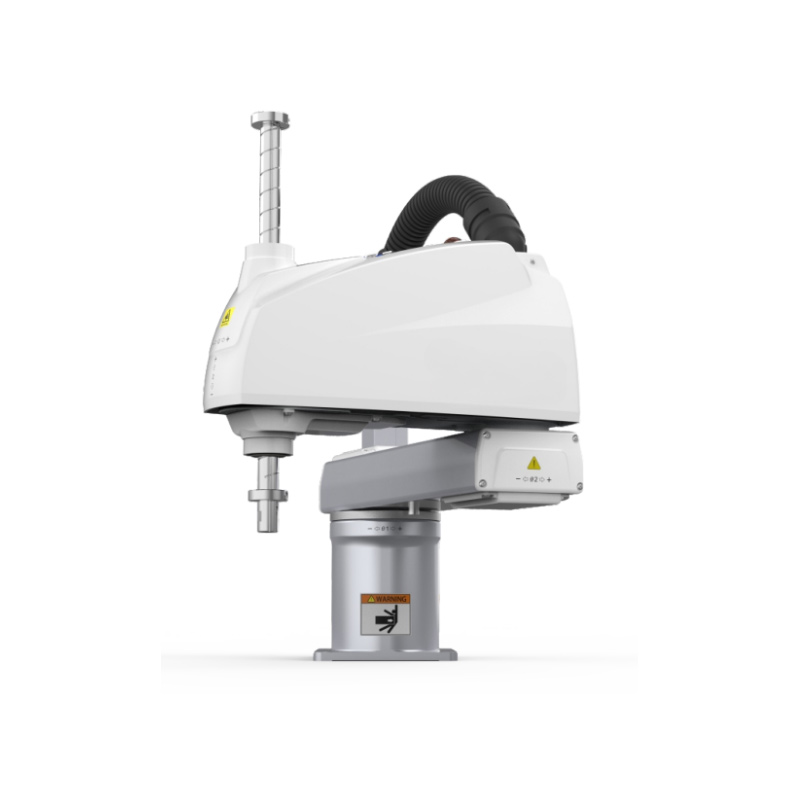

6kg Payload 600mm 4 Axis High Speed High Rigidity SCARA Robot EVS6-600P

  • This SCARA robot is with compact and flexible structure, fast running speed, high transmission accuracy and low noise.
  • It can be applied in handling, palletizing, assembly, 3C and other fields.
  • Maximum Reach: 600mm
  • Rated Payload: 2kg
  • Max Payload: 6kg
Request A Quote

Technical Parameters

Model EVS6-600P
Function material handling, 5C products
Total axes 4
Maximum reach 600mm
Payload rated load 2kg
maximum load 6kg
Permissible inertial torque of rotating axis rated torque 0.01kg·m2
maximum torque 0.12kg·m2
Repeated positioning accuracy 1st axis+2nd axis ±0.02mm
3rd axis (elevating axis) ±0.01mm
4th axis (rotation axis) ±0.01°
Max speed 1st axis 6800mm/s
2nd axis 6800mm/s
3rd axis (elevating axis) 1100mm/sec
4th axis (rotation axis) 2000°/sec
Max operating area 1st axis ±132°
2nd axis ±150°
3rd axis (elevating axis) 200mm
4th axis (rotation axis) ±360°
Installation form Floor mounted
Robot weight 20Kg
Power consumption 1.1kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH (no condensation)
Vibration Under 4.9M/S132

Dimension

SCARA Robot EVS6-600H Dimension

Motion Range

SCARA Robot EVS6-600H Motion Range
