30kg Payload 1820mm Reaching Distance Robotic Arm QJRB30-1

  • High-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.
  • Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.

  • Repeat positioning accuracy: ±0.05mm
  • Armspan: 1820mm
  • Payload: 30kg

Request A Quote

Technical Parameters

ModelQJRB30-1
Axis Number4
Payload30kg
Repeat Positioning±0.05mm
Max Armspan1820mm
Motion RangeJ1±168º
J2﹢105º,﹣50º
J3﹢105º,﹣25º
J4±360º
J5
J6
Max SpeedJ1172º/s
J2172º/s
J3212º/s
J4355º/s
J5
J6
Allowable TorqueJ464.68N.m
J5
J6
Inertia MomentJ41.45kg.m²
J5
J6
Robot Body Weight205kg
Power Capacity3.0kVA
Cabinet Size580*600*960mm
Cabinet Weight100kg
SourceThree-phase four-wire
Installing FormGround
ApplicationIt is suitable for punching machine, furniture, food and beverage, 3C and other industries. On Palletizing, picking up, packaging, handling, loading and unloading.

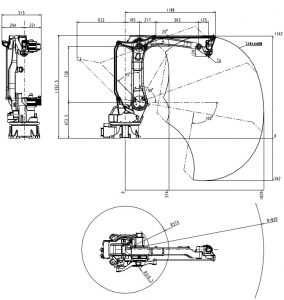

Robot Overall Dimension and Motion Range Drawing

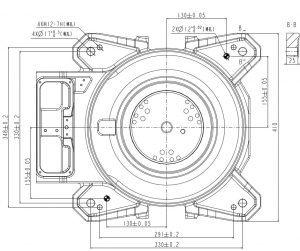

Robot Base Mounting Dimension Drawing

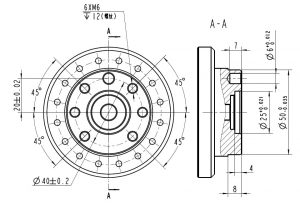

Robot End Installation Dimension Drawing
