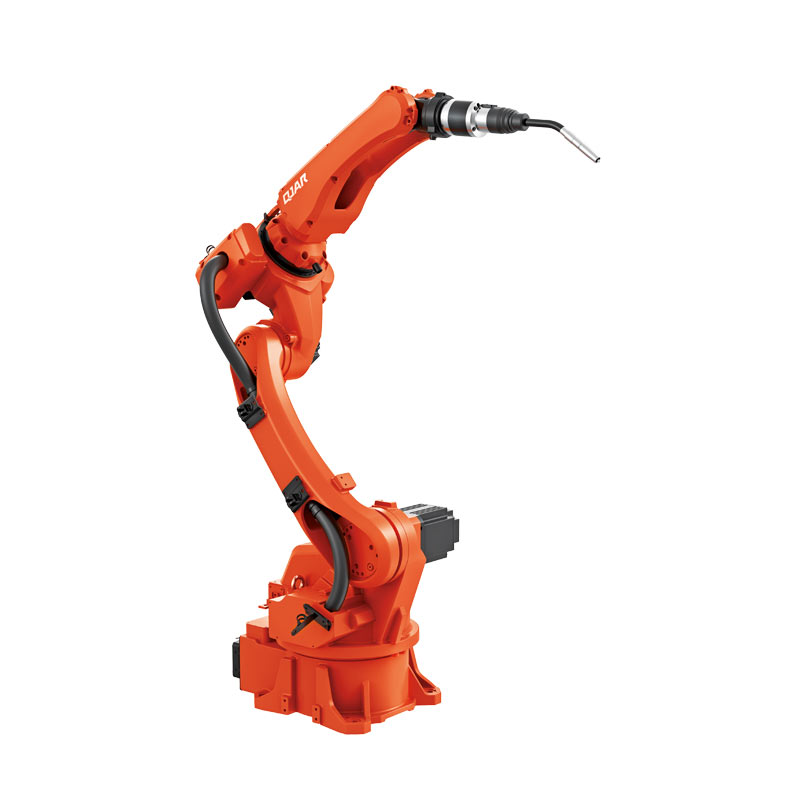

6KG Payload 1.4M Reaching Distance 6 Axis Welding Robot QJR6-1400H
- Multiterm exclusive patents, cost-effective beyond similar products.
- Joint gear gip adjustment, fine control, and quick dynamic response.
- Hollow joint support structure, with more rigid and better flexibility.
- Noise reduction structure, running sound Very soft.
- Repeat positioning accuracy: ±0.08mm
- Armspan: 1456mm
- Working piece: Carbon steel, stainless steel, aluminum, copper, etc
Database Download
- 3D Drawings
- Maintenance Manuals
- Instructions
Please ask our sales
Please ask our sales
Please ask our sales
Technical Parameters
| Model | QJR6-1400H | |
| Axis Number | 6 | |
| Payload | 6kg | |
| Repeat Positioning | ±0.08mm | |
| Max Armspan | 1456mm | |
| Motion Range | J1 | ±168º |
| J2 | ﹢159º,﹣97º | |
| J3 | ﹢95º,﹣125º | |
| J4 | ±183º | |
| J5 | +129, -126° | |
| J6 | ±360º | |
| Max Speed | J1 | 217º/s |
| J2 | 217º/s | |
| J3 | 240°/S | |
| J4 | 378º/s | |
| J5 | 320º/s | |
| J6 | 687º/s | |
| Allowable Torque | J4 | 12.12N.m |
| J5 | 12.12N.m | |
| J6 | 2.94N.m | |
| Inertia Moment | J4 | 0.26kg.m² |
| J5 | 0.26kg.m² | |
| J6 | 0.015kg.m² | |
| Robot Body Weight | 150kg | |
| Power Capacity | 2.65kVA | |
| Cabinet Size | 580*650*960mm | |
| Cabinet Weight | 130kg | |
| Source | three-phase four wire 380V ±10% | |
| Installing Form | Ground, Ceiling | |
| Application | Welding | |
