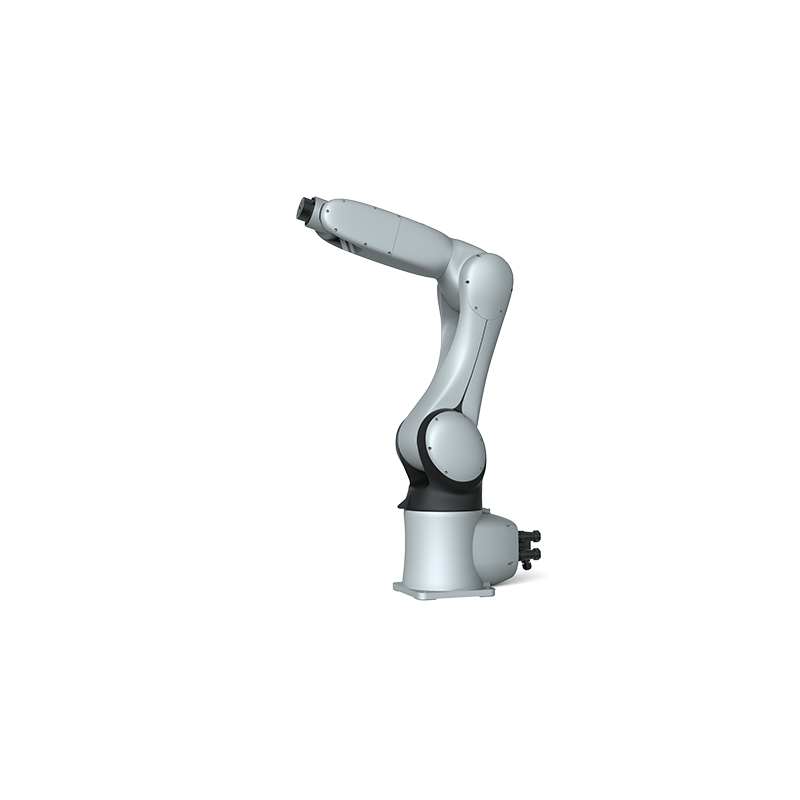

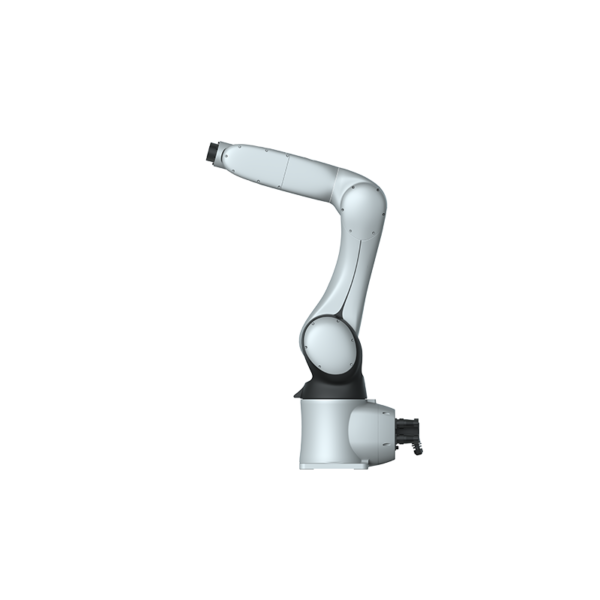

6kg Payload 915mm Reaching Distance 6 Axis Robot EV6-900

  • Small payload 6 axis robot is with flexible structure and high speed. It’s easy to operate and easy to maintain.
  • The well-knit design makes the body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.
  • It is easy to install inside a system or to mount upside-down.
  • Repeat positioning accuracy: ±0.02mm
  • Armspan: 915mm
  • Payload: 6kg

Technical Parameters

6-Axis Industrial Robots
ModelEV6-900
Functionmaterial handling
Total axes6
Payload6kg
Maximum reach915mm
Position repeat accuracy±0.02mm
Max speedaxis 1337.5°/sec
axis 2270°/sec
axis 3375°/sec
axis 4300°/sec
axis 5375°/sec
axis 6468°/sec
Max motion rangeaxis 1±170°
axis 2+100°/-135°
axis 3+110°/-155°
axis 4±170°
axis 5±120°
axis 6±360°
Installation formFloor mounted
Robot weight60kg
Power consumption2.2kw
IP levelIP54/IP65
Installation environmentTemperature0~+45℃
Humidity20~80%RH (no condensation)
VibrationUnder 4.9M/S²
ApplicationCapable of working with vision system. And can be applicated in handling, assembly, sorting,material loading and unloading etc

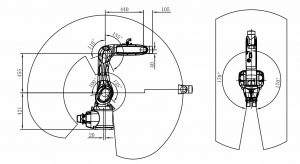

Motion Range and Overall Dimension

6 Axis Robot EV6-900 Overall Dimension

Installation Interface Diagram

6 Axis Robot EV6-900 Installation Interface Diagram
