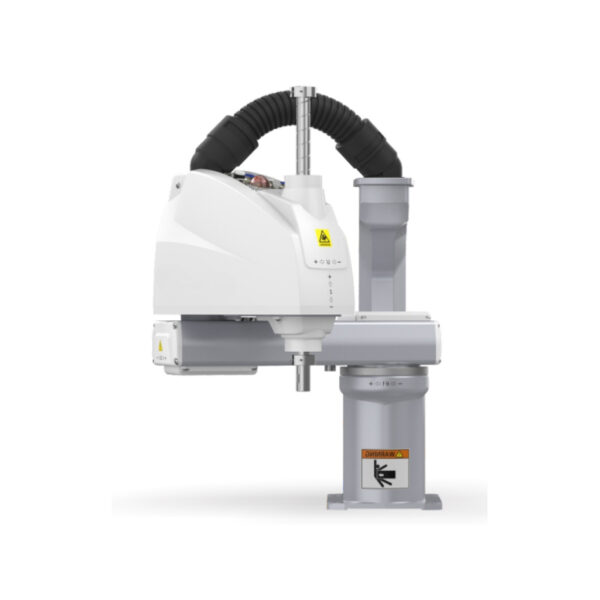

20kg Payload 800mm 4 Axis High Speed High Rigidity SCARA Robot EVS20-800H

  • This SCARA robot is with compact and flexible structure, fast running speed, high transmission accuracy and low noise.
  • It can be applied in handling, palletizing, assembly, 3C and other fields.

  • Maximum Reach: 800mm
  • Rated Payload: 10kg
  • Max Payload: 20kg
Request A Quote

Database Download

  • 3D Drawings
  • Maintenance Manuals
  • Instructions

ask our sales

ask our sales

ask our sales

Technical Parameters

Model EVS20-800H
Total axes 4
Maximum reach 800mm
Payload rated load 10kg
maximum load 20kg
Permissible inertial torque of rotating axis rated torque 0.05kg·m2
maximum torque 0.45kg·m2
Repeated positioning accuracy horizontal coordinate ±0.025mm
z coordinate ±0.01mm
rotation angle ±0.01°
Max speed 1st axis 9940mm/s
2nd axis 9940mm/s
3rd axis (elevating axis) 2020mm/s
4th axis (rotation axis) 1400°/sec
Max operating area 1st axis ±131°
2nd axis ±150°
3rd axis (elevating axis) 420mm
4th axis (rotation axis) ±360°
Installation form Floor mounted
Robot weight(without cable) 49kg
Power consumption 2.55kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH (no condensation)
Vibration Under 4.9M/S132
Application Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc

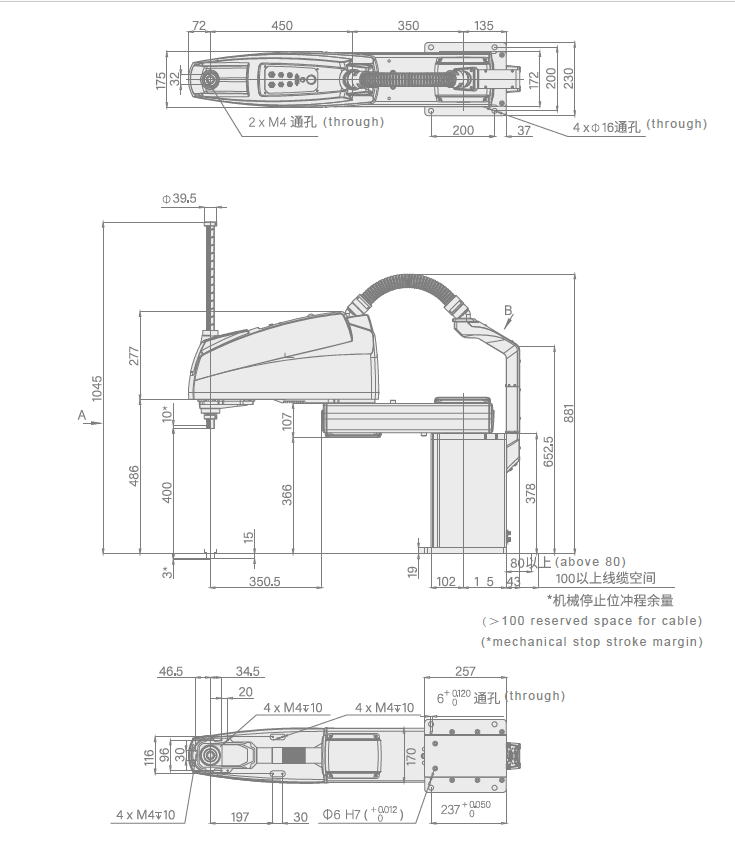

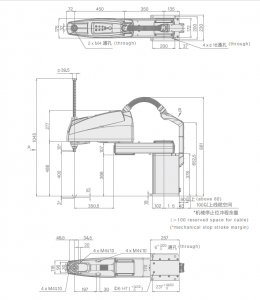

Dimension

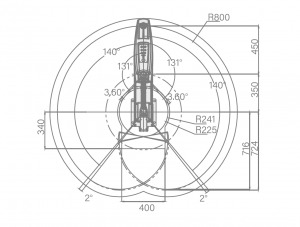

Motion Range
