800kg Payload 3159mm Reaching Distance Robotic Arm QJRB800-1

Special purpose high-load palletizing machine, high-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.

  • Repeat positioning accuracy: ±0.5mm
  • Armspan: 3159mm
  • Payload: 800kg

Database Download

3D Drawings

Instructions

Technical Parameters

Model QJRB800-1
Axis Number 4
Payload 800kg
Repeat Positioning ±0.5mm
Max Armspan 3159mm
Motion Range J1 ±185º
J2 ﹢95º,﹣48º
J3 ﹢112º,﹣17.5º
J4 ±360º
J5
J6
Max Speed J1 65º/s
J2 65º/s
J3 65º/s
J4 115º/s
J5
J6
Allowable Torque J4
J5
J6
Inertia Moment J4 340kg.m²
J5
J6
Robot Body Weight 2550kg
Power Capacity 23kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground
Application Heavy-duty palletizing application. Such as brick factories palletizing.

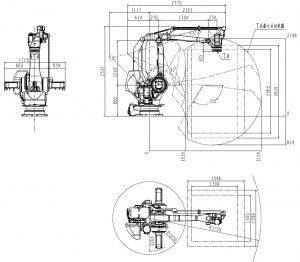

Robot Overall Dimension and Motion Range Drawing

Robotic Arm QJRB800-1 Overall Dimension and Motion Range Drawing

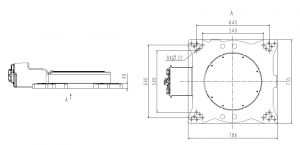

Robot Base Mounting Dimension Drawing

Robotic Arm QJRB800-1 Mounting Dimension Drawing

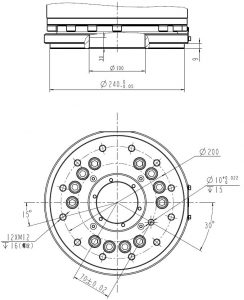

Robot End Installation Dimension Drawing

Robotic Arm QJRB800-1 Installation Dimension
