Discover the Future of Painting with QJAR Robotics! Our advanced spray painting robots bring precision, speed, and reliability to your fingertips. Experience the perfect blend of technology and craftsmanship, ensuring every surface is flawlessly coated. This makes them widely used in various manufacturing fields, such as automobile manufacturing,aerospace,home appliance manufacturing,etc. Embrace innovation with QJAR and elevate your painting projects to new heights.
Achieve the combined use of multiple spraying methods,such as gas spraying,electrostatic spraying,
Cyclone spraying, Paint atomization,magnetic control spraying,etc.
| Model | QJR6-2700P | QJR20-1600(None Explosion-proof) | QJRP10-1(Explosion-proof) | |
| Axis Number | 6 | 6 | 6 | |
| Payload | 6kg | 20kg | 10kg | |
| Repeat Positioning | ±0.5mm | ±0.05mm | ±0.5mm | |
| Max Armspan | 2701mm | 1668mm | 2035mm | |
| Motion Range | J1 | ±95º | ±172º | ±95º |
| J2 | ﹢102º,﹣53º | ﹢147º,﹣115º | ﹢102º,﹣53º | |
| J3 | ﹢80º,﹣80º | ﹢83º,﹣98º | ﹢87º,﹣80º | |
| J4 | ±260º | ±167º | ±260º | |
| J5 | ±270º | ±115º | ±270º | |
| J6 | ±260º | ±360º | ±260º | |
| Max Speed | J1 | 108 °/s | 154º/s | 108 °/s |
| J2 | 103 °/s | 154º/s | 120 °/s | |
| J3 | 115 °/s | 171º/s | 114 °/s | |
| J4 | 360 °/s | 355º/s | 360 °/s | |
| J5 | 360 °/s | 355º/s | 360 °/s | |
| J6 | 360 °/s | 355º/s | 360 °/s | |
| Allowable Torque | J4 | 46 N·m | 45N·m | 46N·m |
| J5 | 45 N·m | 45N·m | 45N·m | |
| J6 | 27 N·m | 40N·m | 27N·m | |
| Inertia Moment | J4 | 3.9 kg·m² | 3.5kg·m² | 3.9kg·m² |
| J5 | 3.9 kg·m² | 3.5kg·m² | 3.9kg·m² | |
| J6 | 1.3 kg·m² | 2.5kg·m² | 1.3kg·m² | |
| Robot Body Weight | 400kg | 270kg | 370kg | |
| Power Capacity | 4.4kVA | 3.7kVA | 4.4kVA | |
| Power Supply | One phase 220V ±10% | One phase 220V | One phase 220V ±10% | |
| Cabinet Size | 600*480*1270mm | 600*480*920mm | 600*480*1270mm | |
| Cabinet Weight | 120kg | 95kg | 120kg | |
| Installing Form | Ground Mounted | Ground Mounted/ wall mounted | Ground Mounted | |
| Application | For painting, there is no singularity point, making the teaching programming much easier. | loading and unloading, handling, sorting, assembly etc. | For painting, there is no singularity point, making the teaching programming much easier. | |
First certified painting robot in China with an explosion-proof feature.
Improve transmission stiffness; same frequency design of the transmission chain, reduce irregular vibration sources.
The front of RP series robot has a wrist structure without singularity and can be equipped with a pipeline arm, which makes synchronous tracking and spraying easier.
Whole machine with fully enclosed design and non-intermittent state design performance, can work in the harsh environment for long time.
Optional positive pressure explosion-proof system to cope with flammable and explosive environment.
Teaching-free spraying function application, the robot imitates manual movements and automatically generates spraying trajectories, without teaching programming, simple, convenient and easy to operate.
Improve transmission stiffness; same frequency design of the transmission chain, reduce irregular vibration sources
The front of RP series robot has a wrist structure without singularity and can be equipped with a pipeline arm, which makes synchronous tracking and spraying easier;
Whole machine with fully enclosed design and nonintermittent state design performance, can work in the harsh environment for long time;
High temperature and wear resistant pipeline protection; Corrosion resistant screws and exposed accessories
Optional positive pressure explosion-proof system to cope with flammable and explosive environment Optional high temperature coating resistant for the whole machine to cope with humid and high temperature environment

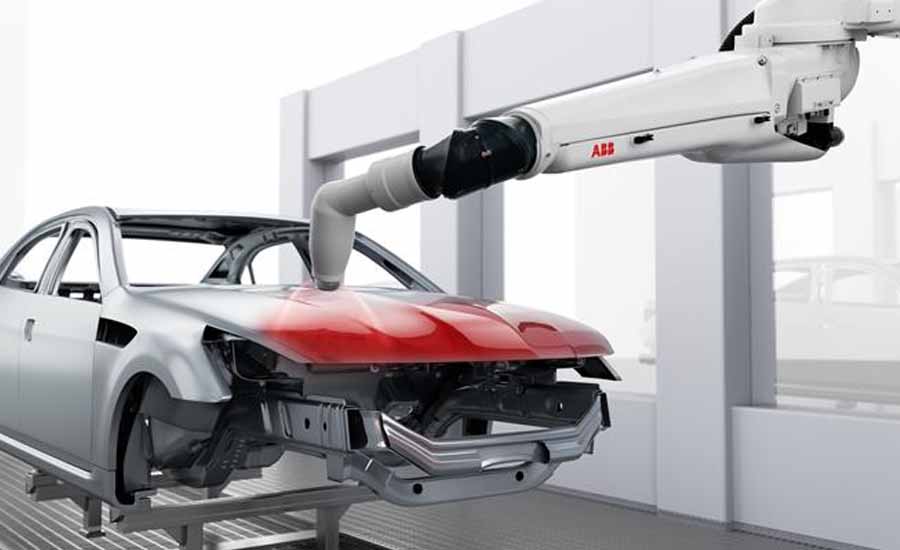

Industrial robot spraying is a way of dispersing uniform and subtle spray with spray gun or butterfly atomizer by means of pressure or centrifugal force, spraying on thesurface of objects.
Spraying is a kind of coating operation, coating includes air spraying, electrostatic spraying, electrophoresis coating, dip coating, brush coating, roll coating, and industrial spraying robot belongs to one of the advanced automation process of air spraying. Air spraying by industrial robot has the advantages of high spraying efficiency, uniform coating thickness with smooth, and have excellent appearance decoration. applicability for various workpieces of shapes and materials.
Industrial painting robot is the
main force and trend in the
spraying industry
Standard controller
Convenient maintenance: reserved 7, 8 axis drive
position for ease of expansion
Space-saving, small & lightweight: highly integrated,small footprint,excellent heat-dissipation efficiency.
Section teaching spraying , easy to complete the application of spraying beyond the workpiece range
No singularity point on the front wrist structure, suitable for suspension chain spray application.
Standard MODBUS TCP communication for spray workstations monitor and operation.
High ROI, recovery of investment within 12-15 months
Save painting, can save 10%-15% painting , improve spraying quality
Improve pollution of spraying environment and the physical harm of spraying personnel
Flexible
routing
Tracking
spray
Suitable for
ground rail
transmission
TCP communication combined with upper computer Convenient for better monitor and operation
Improve robot rigid structure and sealing performance,it is the first explosion-proof certification robot in China
Dynamic tracking calibration, replace the traditional shutdown calibration scheme, reduce the error of start stop clearance of conveyor chain
