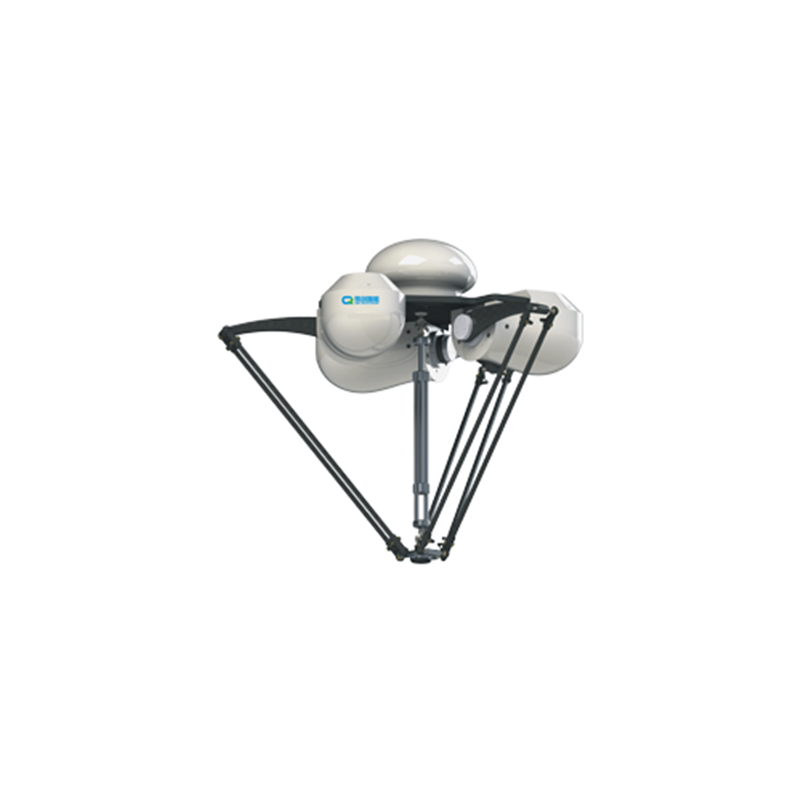

4 Axis Delta Robot EVS-DT

4 Axis Delta Robot EVS-DT

EVS 4(3+1) axis delta robot arm is made by carbon fiber, slghter and strong, high speed and high accuracy.
High performance makes it suitable for handling, assembly, sorting,material loading and unloading, etc.

Repeat Positioning Accuracy: XYZ±0.1mm, R±360°
Standard Cycle Time: 220/min
Maximum Load: 15kg

Request A Quote

Database Download

3D Drawings
Maintenance Manuals
Instructions

Updating

Updating

Updating

Technical Parameters

Delta Robot
Model	EVS-DT
Function	sorting, packing
		Total axis	4(or 3)
				Payload	8 kg
Maximum load	15kg
Position repeat accuracy	XYZ±0.1mm, R±360°
Rotate axis	±360°
Standard cycle time	220/min
		Moment of inertia	0.01kg.m² (max to 0.025kg.m²)
Installation parameters	suspended
Robot weight	95kg
		Voltage	AC 380V or Customized
Power comsuption	6kw
IP Level	IP54
		Installation enviroment(humidity)	15-85% RH
Installation enviroment(temperature)	0-45℃
		Application	Capable of working with vision system. And can be applicated in handling, assembly, sorting,material loading and unloading etc
