Automatic Screwing Robotic Machine

For the traditional manual screwing process, EVS has developed a new generation of intelligent screwing machine based on self-developed integrated control system. The appearance is generous and simple, with high integration, high precision, high flexibility and other characteristics, to meet the automation application needs of industry customers.



  • Flexible, modular design, strong versatility
  • High efficiency, low defect rate, simple operation
  • Greatly reduce screwing machine hardware and software cost

Request A Quote

Database Download

  • 3D Drawings
  • Maintenance Manuals
  • Instructions

Updating

Updating

Updating

Technical Parameters

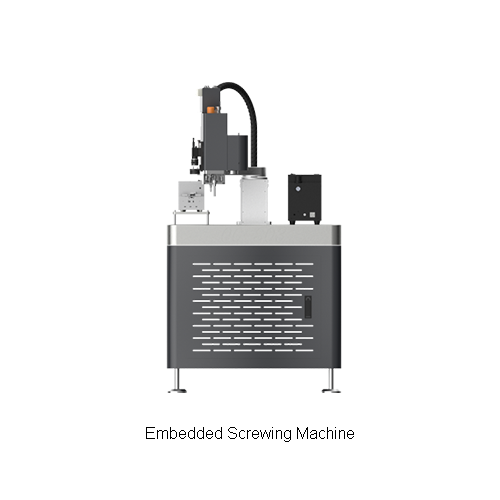

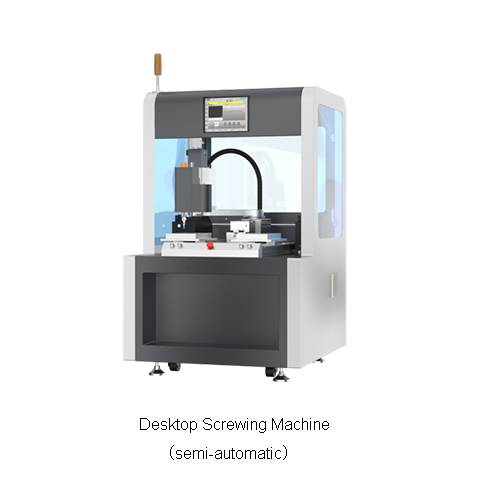

Machine Parameter Type real-time type desktop type embedded type
SCARA Arm Length 600mm 600mm 800mm
Number of Screwing Stations 2 1 1
Accuracy ±0.02mm ±0.02mm ±0.02mm
Z Axis Travel 100mm 100mm 100mm
Screwing Efficiency 1-2s/piece
Feeding Methods waftage suck waftage
Control System IVC-K series
Fault Detection floating lock, sliding teeth, leaking lock, etc.
Extend MES system
Feeding System Storge 200-3000pcs
Screw Range M1-M4
Screw Type flat-end/sunk screw
Vision System Supported Camera Numbers 4
Camera Pixel 130W/500W/1000W
Camera Accuracy ±0.01mm
Positioning Function mark point/CAD import/teach
Srewing System Screwdriver Type intelligent
screwdriver
servo
screwdriver
servo
screwdriver
Screwdriver Number 1 1 2
Machine Specification Size customized
Power 1kw 1kw 1kw
Power Source AC 220V ,50/60 Hz
Environment Temperature 5~40℃
Humidity 10~80%(no condensation)
Air Pressure 0.4~0.7Mpa
