6kg Payload 600mm 4 Axis SCARA Robot SCR006-600



  • EVS SCARA robot is the perfect choice for your manufacturing process.
  • Compact and flexible structure, fast running speed, high transmission accuracy and low noise.

  • Maximum Reach: 600mm
  • Payload: 6kg

Request A Quote

Database Download

  • 3D Drawings
  • Maintenance Manuals
  • Instructions

Updating

Updating

Updating

Technical Parameters

4-Axis SCARA Robots
Model SCR006-600
Function material handling, 3C products
Total axes 4
Maximum reach 600mm
Payload rated load 3kg
maximum load 6kg
Permissible inertial torque of rotating axis rated torque 0.01kg·m2
maximum torque 0.12kg·m2
Repeated positioning accuracy 1st axis+2nd axis ±0.02mm
3rd axis (elevating axis) ±0.01mm
4th axis (rotation axis) ±0.01°
Max speed 1st axis 450°/sec
2nd axis 720°/sec
3rd axis (elevating axis) 1000mm/sec
4th axis (rotation axis) 2000°/sec
Max operating area 1st axis ±132°
2nd axis ±145°
3rd axis (elevating axis) 220mm
4th axis (rotation axis) ±360°
Installation form Floor mounted
Robot weight 17Kg
Power consumption 0.8kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH (no condensation)
Vibration Under 4.9M/S²
Application Capable of working with vision system. And can be applicated in handling, assembly, sorting,material loading and unloading etc

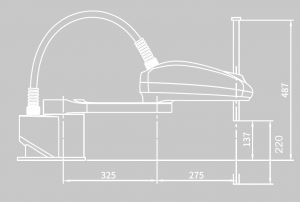

Dimension Drawing

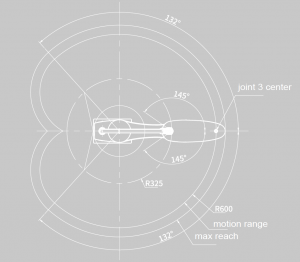

Motion Range Drawing
