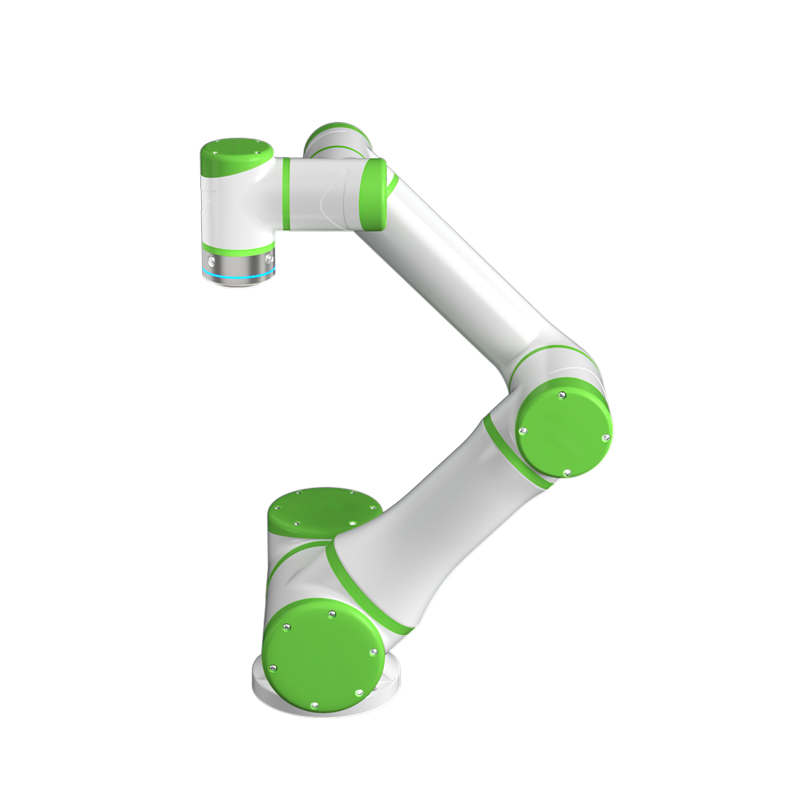

12kg payload 1300 mm reaching distance 6 axis collaborative robot

  • The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne.
  • This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure.
  • With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment.
  • Repeat positioning accuracy: ±0.02mm
  • Armspan: 1300mm
  • payload:12kg

Technical Parameters

Model R12-135S
Robot Arm Net Eeight
(without cables)
36KG
Payload 12KG
Armspan 1300mm
Degree of Freedom 6
Motion
Range
Joint 1 ±360°
Joint 2 ±360°
Joint 3 ±165°
Joint 4 ±360°
Joint 5 ±360°
Joint 6 ±360°
Motion
Speed
Joint 1 150°/s
Joint 2 150°/s
Joint 3 210°/s
Joint 4 240°/s
Joint 5 240°/s
Joint 6 240°/s
EOA Maximum Speed 3m/s
Repeat Positioning Accuracy (maximum) ±0.03mm
Absolute Positioning Accuracy (maximum) 0.5mm
Control Bus/Frequency EtherCAT/1kHz
Installation Method any angle
Typical Power 550W
Material Aluminum alloy
Ambient Temperature -5°C55°C
Working Environment (humidity) 5%90%RH
no condensation
Cable Length 6m
IP GRADE IP65
Noise 60dB
Tool End IO Port digital input*2digital output*2
analog input*2output power supply24V/1A*1
Tool End Communication Port EtherCAT*1RS485*1
output power supply24V/1A*1

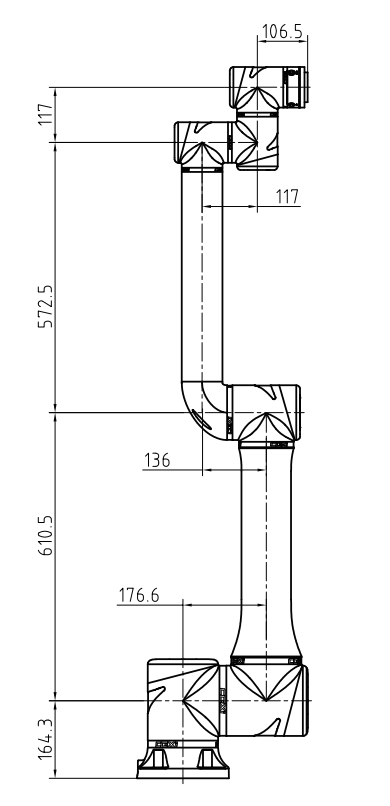

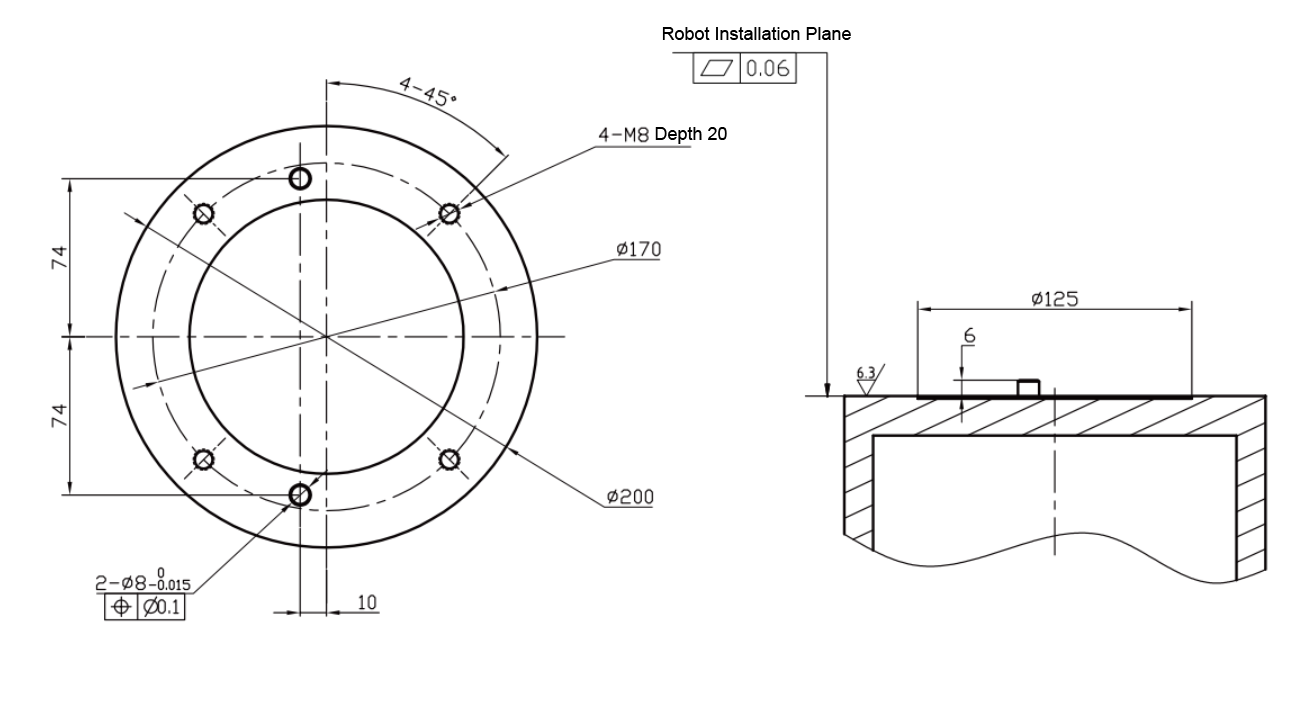

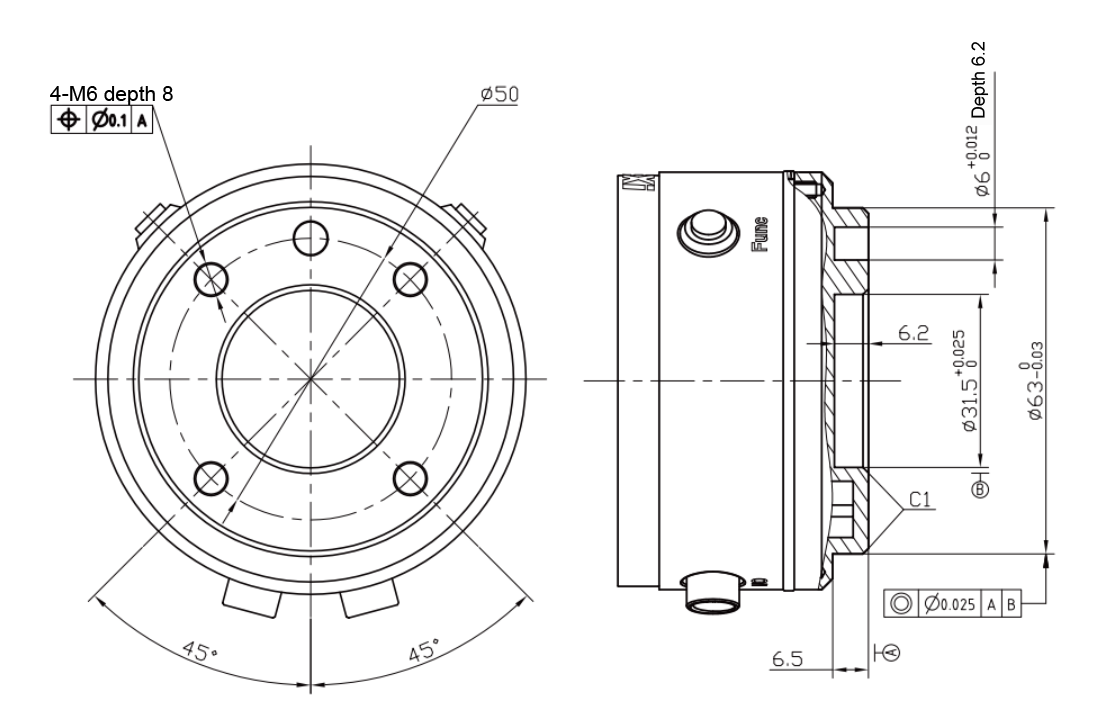

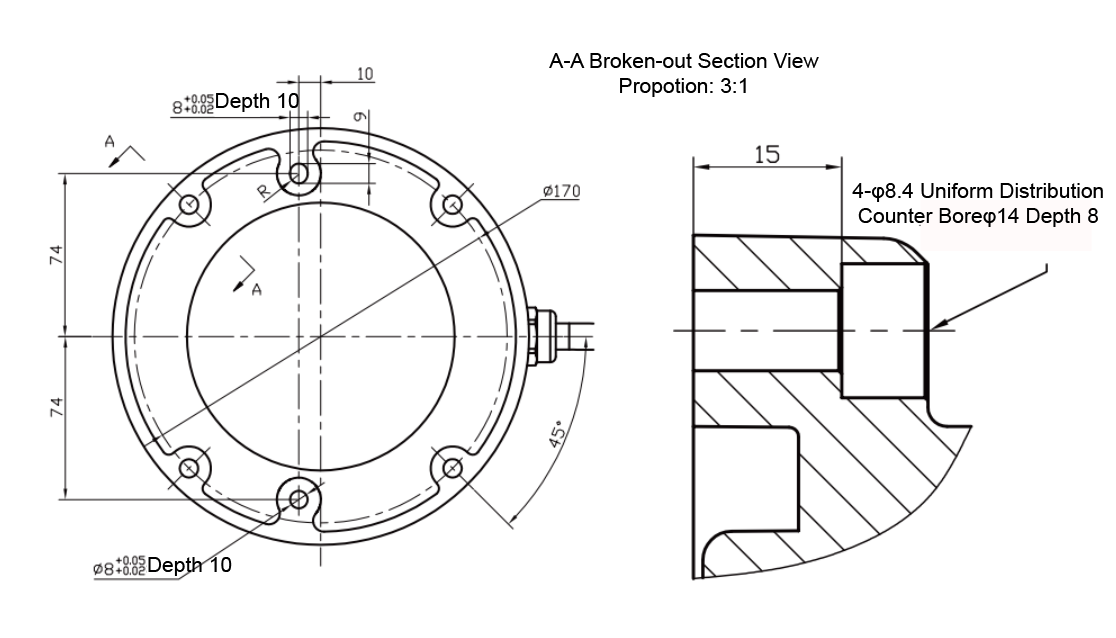

Robot Overall Dimension & Base and End Flange Dimension

12kg payload 1300 mm collaborative robot Dimension 1
12kg payload 1300 mm collaborative robot Dimension 2
12kg payload 1300 mm collaborative robot Dimension 3
12kg payload 1300 mm collaborative robot Dimension 4

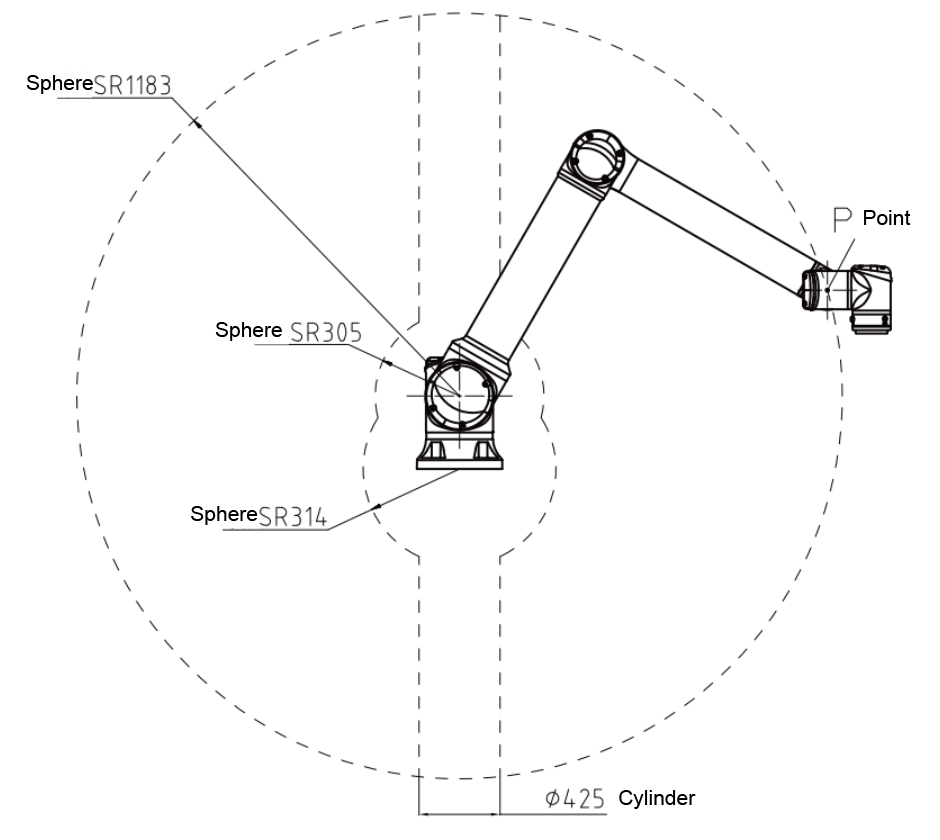

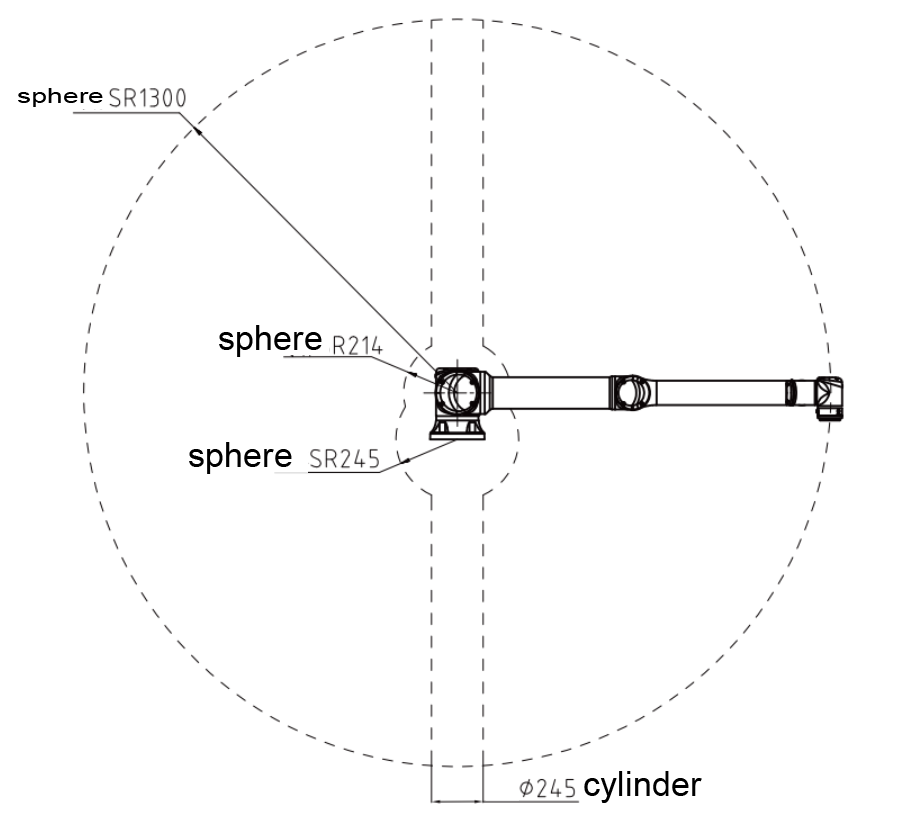

Robot Motion Range

12kg payload 1300 mm collaborative robot Motion Range 1
12kg payload 1300 mm collaborative robot Motion Range 2
