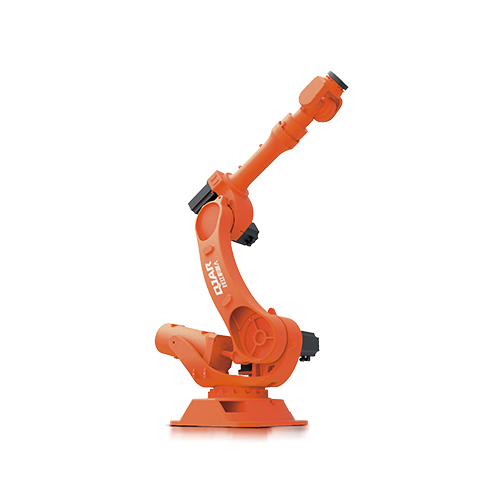

210kg Payload 2688mm Reaching Distance Robotic Arm QJR210-1

  • Highly compact design.
  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, palletizing, loading and unloading, handling, polishing, assembly and other wide range of applications.

  • Repeat positioning accuracy: ±0.2mm
  • Armspan: 2688mm
  • Payload: 210kg

Request A Quote

Database Download

  • 3D Drawings
  • Maintenance Manuals
  • Instructions

Updating



Technical Parameters

Model QJR210-1
Axis Number 6
Payload 210kg
Repeat Positioning ±0.2mm
Max Armspan 2688mm
Motion Range J1 ±165º
J2 ﹢85º,﹣50º
J3 ﹢75º,﹣160º
J4 ±360º
J5 ±120º
J6 ±360º
Max Speed J1 100º/s
J2 80º/s
J3 95º/s
J4 130º/s
J5 120º/s
J6 200º/s
Allowable Torque J4 1200N.m
J5 1200N.m
J6 650N.m
Inertia Moment J4 84kg.m²
J5 84kg.m²
J6 55kg.m²
Robot Body Weight 1257kg
Power Capacity 30.6kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground
Application Welding, palletizing, loading and unloading, handling, polishing and grinding, assembly.
More +

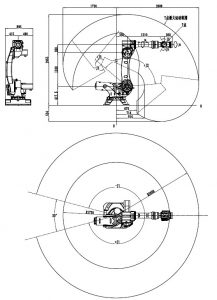

Robot Overall Dimension and Motion Range Drawing

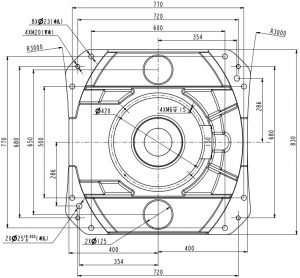

Robot Base Mounting Dimension Drawing

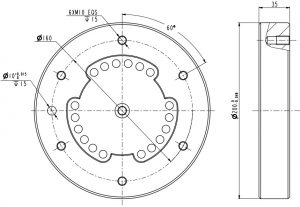

Robot End Installation Dimension Drawing
