3kg Payload 620mm Reaching Distance 6 Axis Collaborative Robot Arm

The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne.
This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure.
With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment.

Model		CR3-066S1-CS01
Robot Arm Net Eeight (without cables)		15kg
Payload		3KG

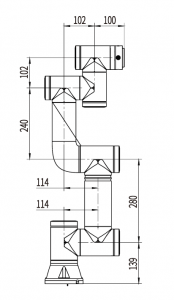

Armspan		620mm
Degree of Freedom		6

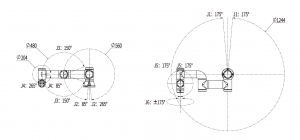

Motion Range	Joint 1	±360°
	Joint 2	±360°
	Joint 3	±360°
	Joint 4	±360°
	Joint 5	±360°
	Joint 6	±360°
Motion Speed	Joint 1	180°/s
	Joint 2	180°/s
	Joint 3	180°/s
	Joint 4	180°/s
	Joint 5	180°/s
	Joint 6	180°/s
EOA Maximum Speed		1m/s
Repeat Positioning Accuracy (maximum)		± 0.03mm
Absolute Positioning Accuracy (maximum)		0.5mm
Control Bus/Frequency		EtherCAT/1kHz

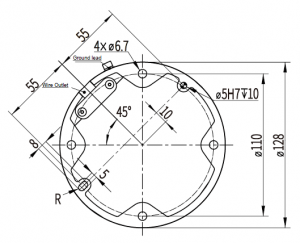

Installation Method		any angle
Typical Power		150W
Material		Aluminum alloy
Ambient Temperature		-5°C～55°C
Working Environment (humidity)		5%～90%RH （no condensation）
Cable Length		5m
IP GRADE		IP66
Noise		≤60dB

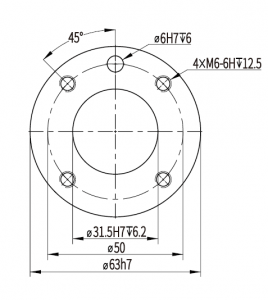

Tool End IO Port		digital input2，digital output2， analog input2，output power supply24V/1A1
Tool End Communication Port		EtherCAT1，RS4851， output power supply24V/1A*1
