10kg payload 1440mm reaching distance 6 axis collaborative robot

The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne.
This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure.
With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment.

Request A Quote

please ask our sales

Model		EVC10
Specification	payload	10kg
	reach	1400mm
	dof	6
	HMI	10.1 inch teach pendant or mobile terminal APP
Movement	repeatability	±0.05mm

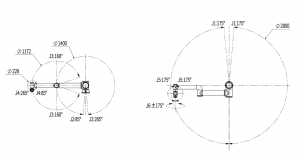

	axis movement	max range	max speed
	axis 1	±175°	±180°/s
	axis 2	+ 85°/- 265°	±180°/s
	axis 3	±160°	±180°/s
	axis 4	+ 85°/- 265°	±180°/s
	axis 5	±175°	±180°/s
	axis 6	±175°	±180°/s
	typical TCP speed	1m/s
Features	IP level	IP66
	noise	<65dB
	mounting agle	any direction
	end of arm I/O	digital input 2 digital output 2
		analog input 1 analog output 1
	end of arm power supply	24V/2A
	interface&openness	TCP/IP, RS485
	communication interface	C/C++, Lua, Pathon, ROS

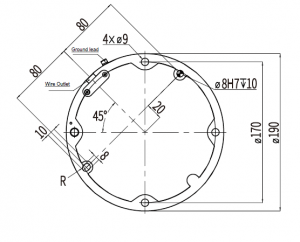

Physics	base mounting diameter	190mm
	weight	about 40kg
	operating temperature	0-45℃
	operating humidity	<90%RH
	material	aluminum, steel
